- Categories
- Wire Connectors
- Butt Splices
18 products

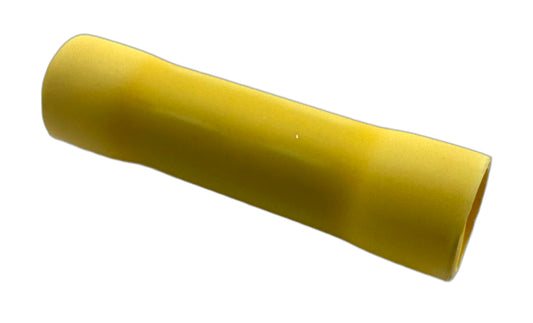

Insulated Crimp-On Butt Splices
These butt splices are insulated to help prevent accidental short-circuits with nearby wires and protect the connection from other environmental hazards. Use butt splices to join two wires end-to-end, allowing you to extend, repair, or replace electrical connections.

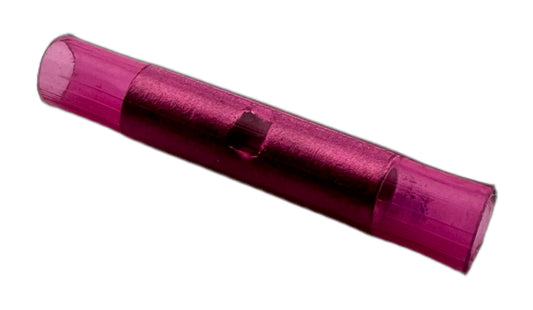

Nylon insulation is more durable and chemically-resistant than vinyl insulation.

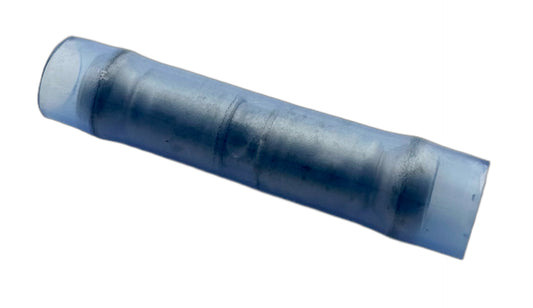

Double-crimp splices have a brass sleeve on the barrel that can be crimped to wire insulation to provide strain relief for the connection.
| For Wire Gauge | Length | Insulation Color | Crimp Type | Terminal Material | Max. Temp. | Max. Voltage | Each | Pkg. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

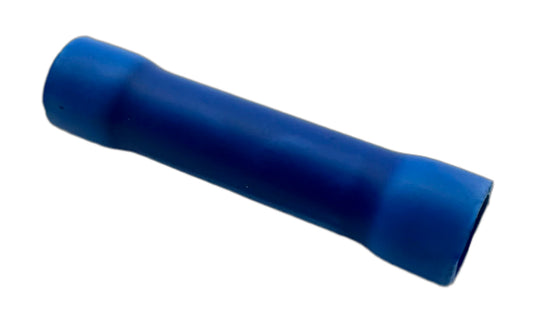

Vinyl Insulation |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 22-18 | 0.97" | Red | Single | Tin-Plated Copper | 165° F | 600V | 115AA01 | $0.62 | $20.59 / pack of 100 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 16-14 | 0.97" | Blue | Single | Tin-Plated Copper | 165° F | 600V | 115AA02 | $0.65 | $21.99 / pack of 100 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 12-10 | 1.07" | Yellow | Single | Tin-Plated Copper | 165° F | 600V | 115AA03 | $0.68 | $22.75 / pack of 100 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

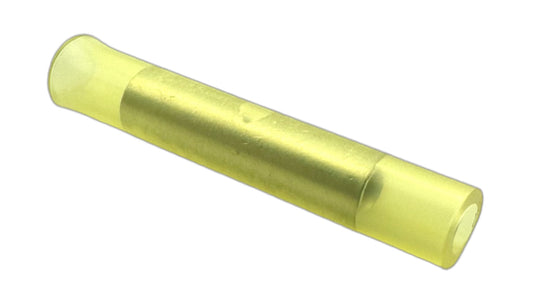

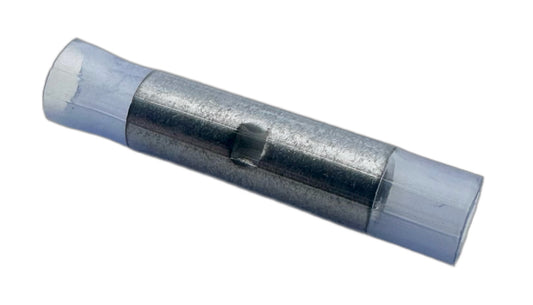

Nylon Insulation |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 26-24 | 0.76" | Yellow | Single | Tin-Plated Copper | 220° F | 600V | 115AA04 | $0.77 | $18.92 / pack of 50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 22-18 | 1.00" | Red | Single | Tin-Plated Copper | 165° F | 600V | 115AA05 | $0.83 | $19.78 / pack of 50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 22-18 | 1.00" | Red | Double | Tin-Plated Copper | 165° F | 600V | 115AA08 | $1.13 | $20.18 / pack of 25 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 16-14 | 1.00" | Blue | Single | Tin-Plated Copper | 165° F | 600V | 115AA06 | $0.85 | $19.81 / pack of 50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 16-14 | 1.00" | Blue | Double | Tin-Plated Copper | 165° F | 600V | 115AA09 | $1.20 | $21.42 / pack of 25 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

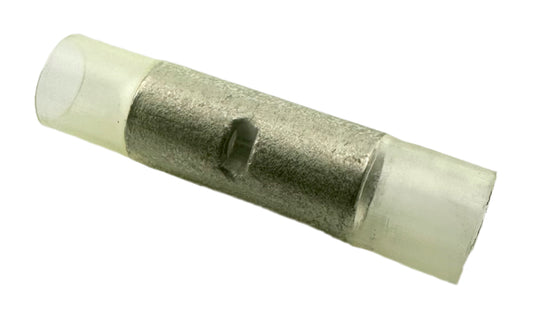

| 12-10 | 1.07" | Yellow | Single | Tin-Plated Copper | 165° F | 600V | 115AA07 | $0.98 | $25.66 / pack of 50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

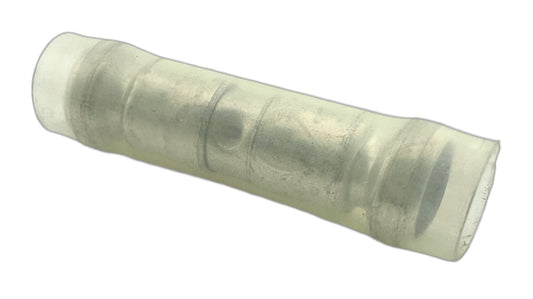

| 12-10 | 1.20" | Yellow | Double | Tin-Plated Copper | 165° F | 600V | 115AA10 | $1.22 | $23.41 / pack of 25 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-
For 22-18 AWG
Regular price From $0.62 eachRegular priceUnit price per -
For 16-14 AWG
Regular price From $0.65 eachRegular priceUnit price per -
For 12-10 AWG
Regular price From $0.68 eachRegular priceUnit price per -
For 26-24 AWG
Regular price From $0.77 eachRegular priceUnit price per -
For 22-18 AWG
Regular price From $0.83 eachRegular priceUnit price per -
For 22-18 AWG, double crimp
Regular price From $1.13 eachRegular priceUnit price per -
For 16-14 AWG
Regular price From $0.85 eachRegular priceUnit price per -
For 16-14 AWG, double crimp
Regular price From $1.20 eachRegular priceUnit price per -
For 12-10 AWG
Regular price From $0.98 eachRegular priceUnit price per -
For 12-10 AWG, double crimp
Regular price From $1.22 eachRegular priceUnit price per
Vinyl Insulation
Nylon Insulation

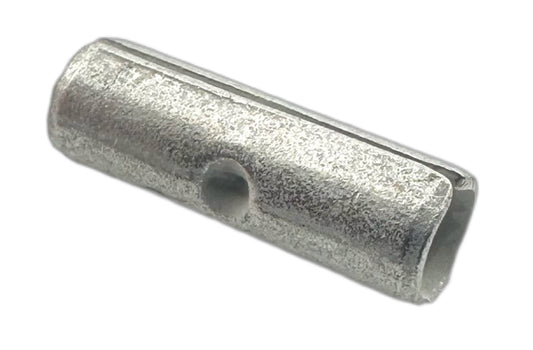

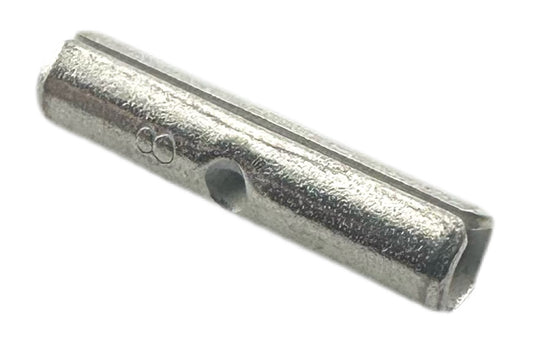

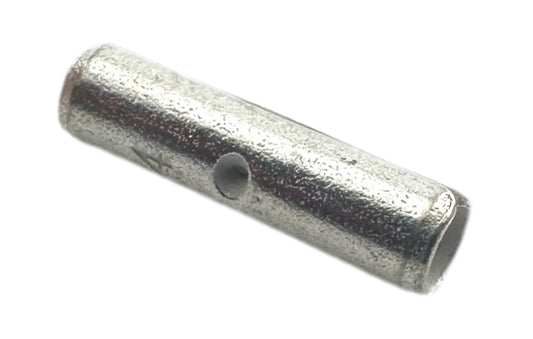

Noninsulated Crimp-On Butt Splices
These butt splices aren't insulated, so you can crimp the barrel more precisely in applications where the connection will not be inadvertently touched. Use butt splices to join two wires end-to-end, allowing you to extend, repair, or replace electrical connections.
| For Wire Gauge | Length | Terminal Material | Max. Temp. | Max. Voltage | Specifications Met | Each | Pkg. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 26-24 | 0.48" | Tin-Plated Copper | 345° F | 600V | __ | 114AA01 | $0.49 | $9.67 / pack of 100 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 22-18 | 0.56" | Tin-Plated Copper | 345° F | 600V | UL Listed, CSA Certified | 114AA02 | $0.69 | $17.19 / pack of 100 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 16-14 | 0.56" | Tin-Plated Copper | 345° F | 600V | UL Listed, CSA Certified | 114AA03 | $0.69 | $17.40 / pack of 100 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 12-10 | 0.63" | Tin-Plated Copper | 345° F | 600V | UL Listed, CSA Certified | 114AA04 | $0.84 | $24.26 / pack of 100 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-
For 26-24 AWG
Regular price From $0.49 eachRegular priceUnit price per -
For 22-18 AWG
Regular price From $0.69 eachRegular priceUnit price per -
For 16-14 AWG
Regular price From $0.69 eachRegular priceUnit price per -
For 12-10 AWG
Regular price From $0.84 eachRegular priceUnit price per

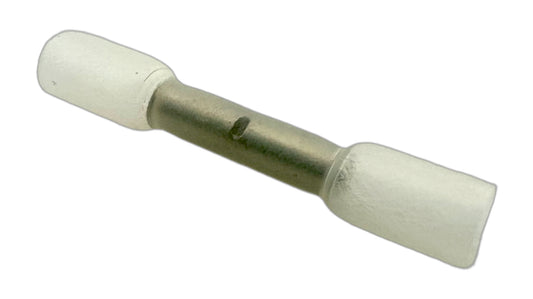

Heat-Shrink Crimp-On Butt Splices
The adhesive insulation on these butt splices shrinks to seal out water and other environmental hazards when heat is applied. Use butt splices to join two wires end-to-end, allowing you to extend, repair, or replace electrical connections.
| For Wire Gauge | Length | Insulation Color | Insulation Material | Terminal Material | Max. Temp. | Max. Voltage | Specifications Met | Each | Pkg. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 26-22 | 1.00" | Clear | Adhesive heat-shrink | Tin-Plated Copper | 220° F | 600V | __ | 113AA01 | $1.46 | $21.38 / pack of 25 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 22-18 | 1.50" | Red | Adhesive heat-shrink | Tin-Plated Copper | 220° F | 600V | UL Listed, C-UL Listed | 113AA02 | $1.52 | $23.76 / pack of 25 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 16-14 | 1.50" | Blue | Adhesive heat-shrink | Tin-Plated Copper | 220° F | 600V | UL Listed, C-UL Listed | 113AA03 | $1.56 | $24.44 / pack of 25 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 12-10 | 1.70" | Yellow | Adhesive heat-shrink | Tin-Plated Copper | 220° F | 600V | UL Listed, C-UL Listed | 113AA04 | $1.75 | $29.18 / pack of 25 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-
For 26-22 AWG
Regular price From $1.46 eachRegular priceUnit price per -
For 22-18 AWG
Regular price From $1.52 eachRegular priceUnit price per -
For 16-14 AWG
Regular price From $1.56 eachRegular priceUnit price per -
For 12-10 AWG
Regular price From $1.75 eachRegular priceUnit price per
