Insulated Bullet Terminals
These bullet terminals are completely covered when mated to protect the connection and prevent accidental short-circuits with nearby wire. Bullet terminals can be pulled apart or pushed together by hand to break or make connections and have round tabs that can fit through small holes more easily than quick-disconnect terminals.
| For Wire Gauge | Tab Wd. | Insulation Color | Insulation Material | Terminal Material | Max. Temp. | Max. Voltage | Each | Pkg. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Female |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

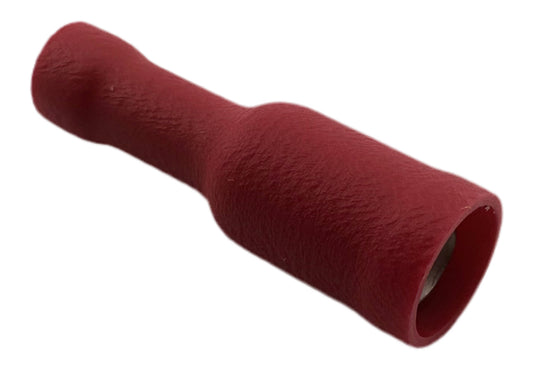

| 22-18 | 0.157" | Red | Vinyl | Tin-Plated Brass | 165° F | 300V | 118AA01 | $0.76 | $12.61 / pack of 50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

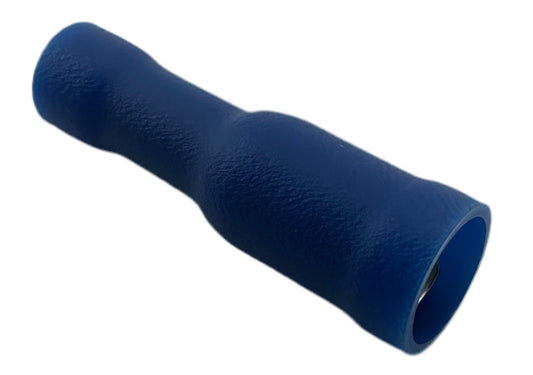

| 16-14 | 0.157" | Blue | Vinyl | Tin-Plated Brass | 165° F | 300V | 118AA02 | $0.76 | $12.61 / pack of 50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

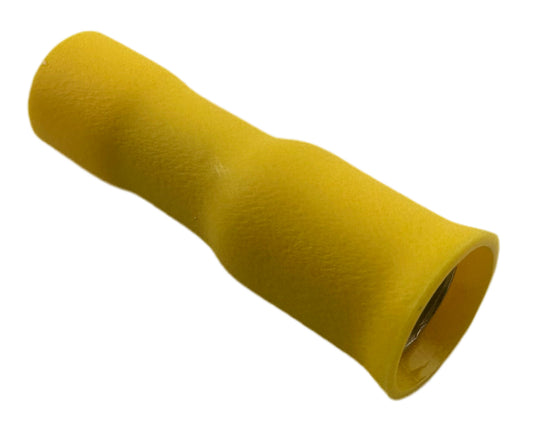

| 12-10 | 0.195" | Yellow | Vinyl | Tin-Plated Brass | 165° F | 300V | 118AA03 | $1.09 | $18.20 / pack of 50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Male |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

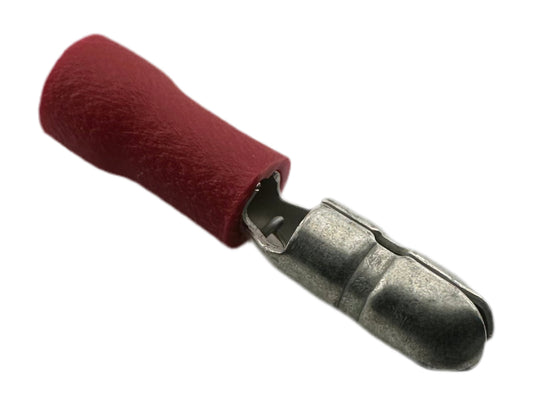

| 22-18 | 0.157" | Red | Vinyl | Tin-Plated Brass | 165° F | 300V | 118AA04 | $0.93 | $15.44 / pack of 50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

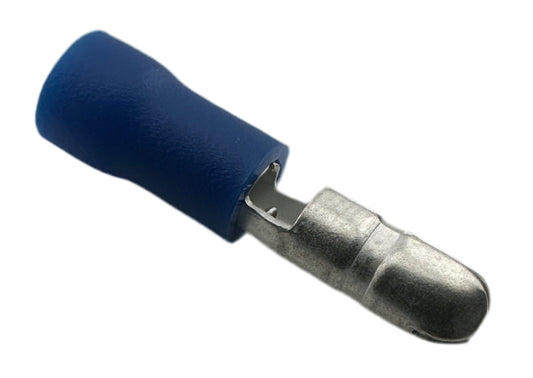

| 16-14 | 0.157" | Blue | Vinyl | Tin-Plated Brass | 165° F | 300V | 118AA05 | $0.93 | $15.44 / pack of 50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

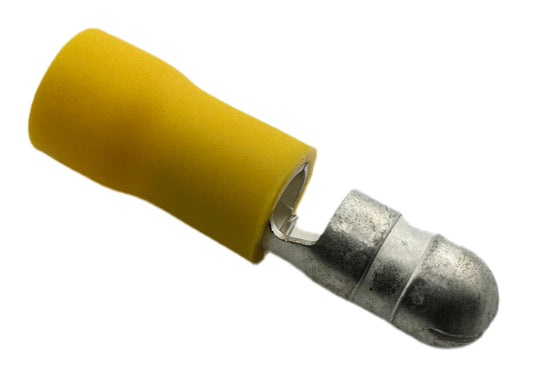

| 12-10 | 0.195" | Yellow | Vinyl | Tin-Plated Brass | 165° F | 300V | 118AA06 | $0.98 | $16.30 / pack of 50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-
For 22-18 AWG, 0.157" wide
Regular price From $0.76 eachRegular priceUnit price per -
For 16-14 AWG, 0.157" wide
Regular price From $0.76 eachRegular priceUnit price per -
For 12-10 AWG, 0.195" wide
Regular price From $1.09 eachRegular priceUnit price per -
For 22-18 AWG, 0.157" wide
Regular price From $0.93 eachRegular priceUnit price per -
For 16-14 AWG, 0.157" wide
Regular price From $0.93 eachRegular priceUnit price per -
For 12-10 AWG, 0.195" wide
Regular price From $0.98 eachRegular priceUnit price per
