• Insulated Bullet Terminals, male, for 16-14 AWG, 0.157" wide
  • Insulated Bullet Terminals, male, for 16-14 AWG, 0.157" wide straight view
1 2

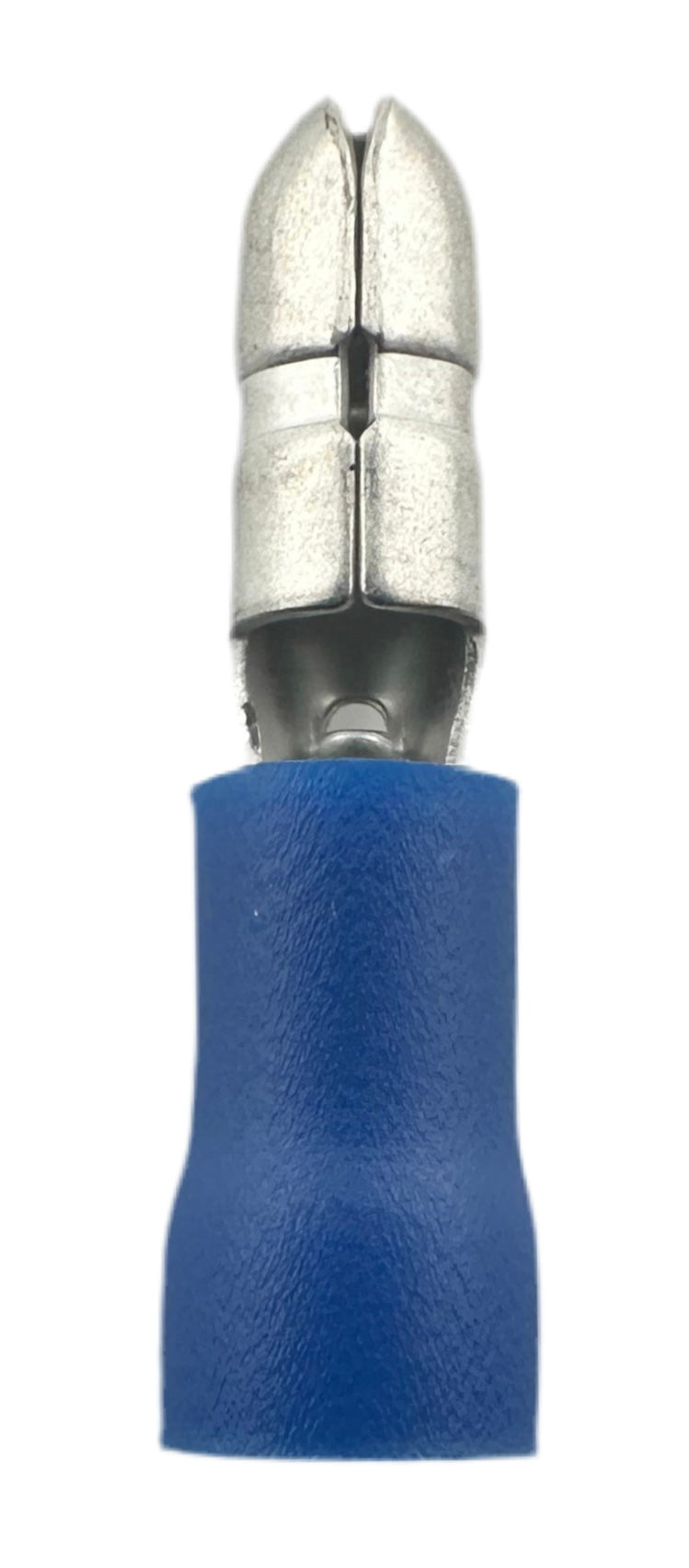

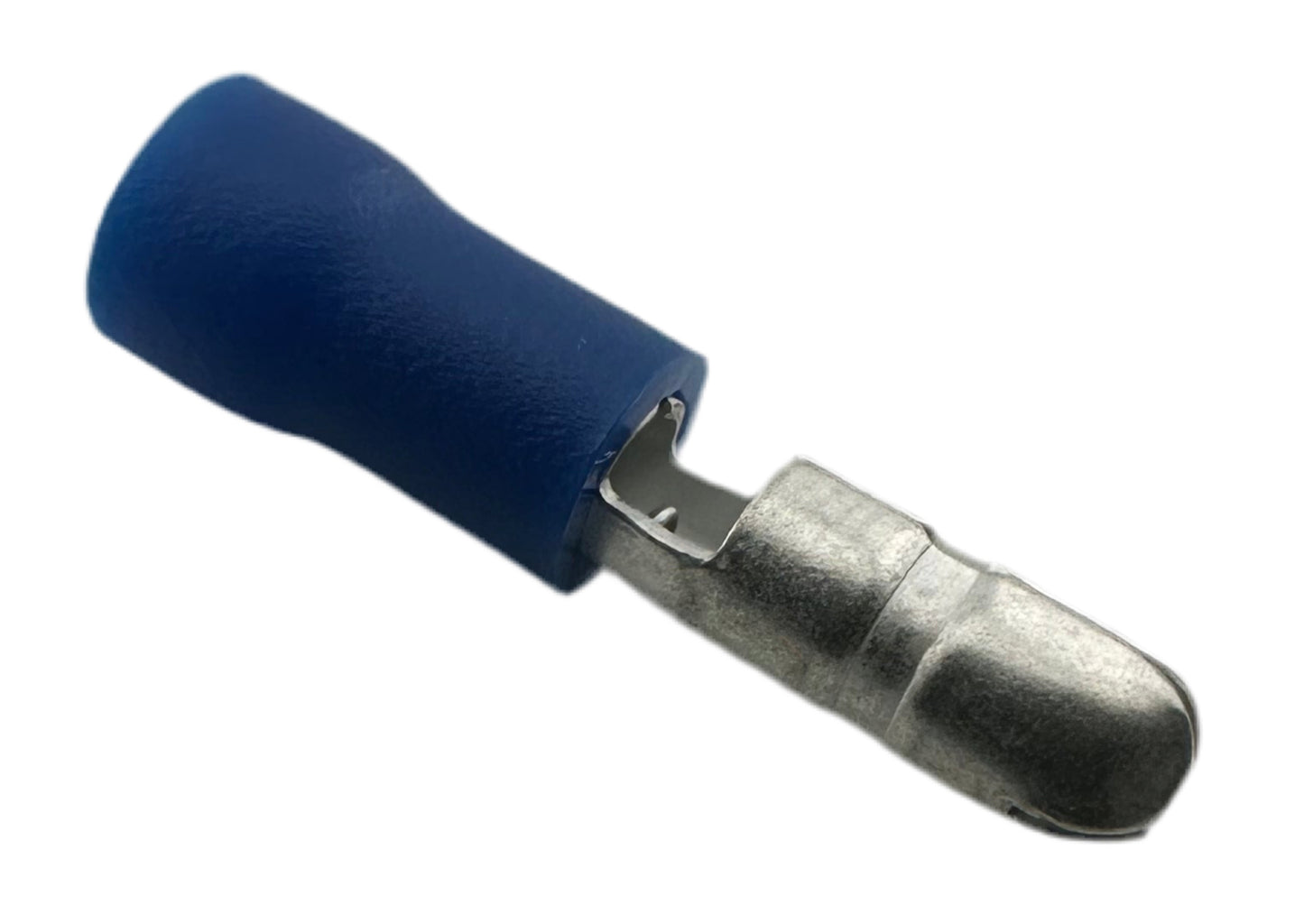

Insulated Bullet Terminals

male, for 16-14 AWG, 0.157" wide

Insulated Bullet Terminals, male, for 16-14 AWG, 0.157" wide

$0.93 each
$0.93
Sale Sold out

In stock - ships from Chicago warehouse

Delivers Tue. Apr 29 - Thu. May 1

118AA051

Pack size
each

Free shipping for $99+ orders

Returns accepted within 90 days

Terminal TypeBullet
InsulationBarrel Insulated
Wire Connection TypeCrimp
GenderMale
For Wire Gauge16-14
ShapeStraight
Tab Width0.157"
Insulation ColorBlue
Insulation MaterialVinyl
Terminal MaterialTin-Plated Brass
Maximum Temperature165° F
Maximum Voltage300V
Specifications MetUL Recognized Component
Country of OriginUnited States

These bullet terminals are completely covered when mated to protect the connection and prevent accidental short-circuits with nearby wire. Bullet terminals can be pulled apart or pushed together by hand to break or make connections and have round tabs that can fit through small holes more easily than quick-disconnect terminals.
