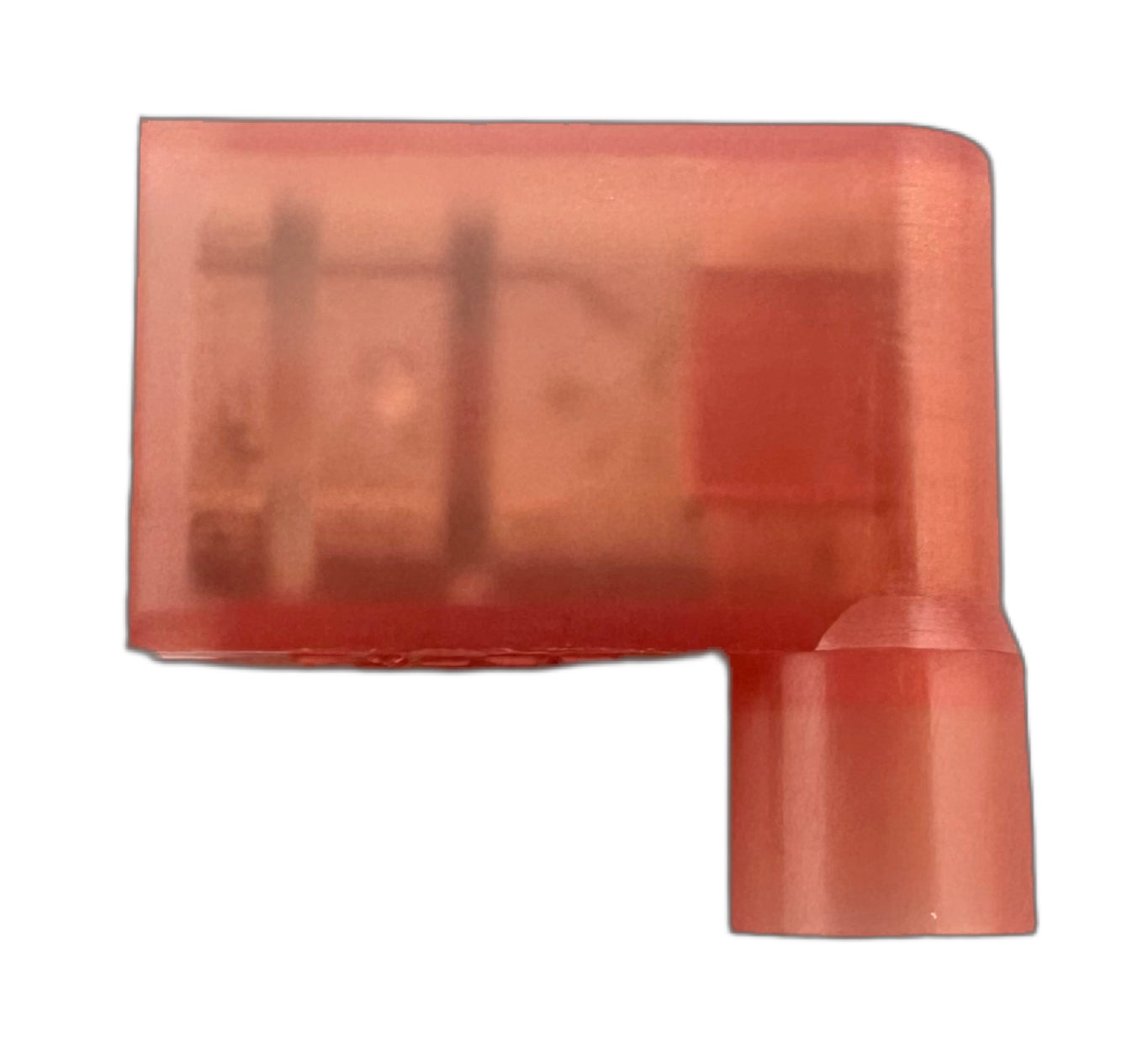

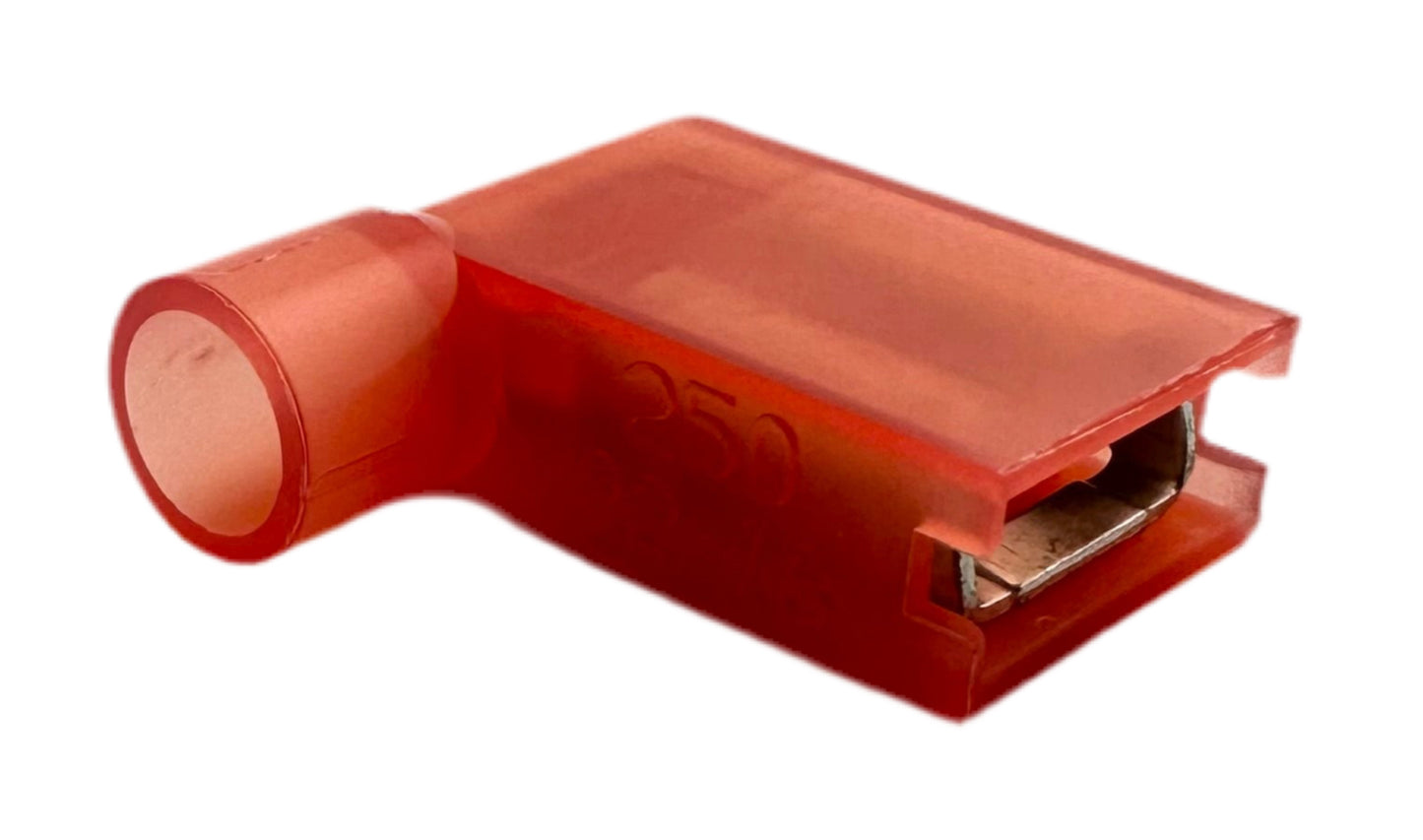

  • Fully Insulated Quick-Disconnect Terminals, Female, 90 Degree Flag, for 22-18 AWG, 0.250" Wide x 0.032" Thick
  • Fully Insulated Quick-Disconnect Terminals, Female, 90 Degree Flag, for 22-18 AWG, 0.250" Wide x 0.032" Thick straight view
1 2

Fully Insulated Quick-Disconnect Terminals
Female, 90 Degree Flag, for 22-18 AWG, 0.250" Wide x 0.032" Thick

Fully Insulated Quick-Disconnect Terminals, Female, 90 Degree Flag, for 22-18 AWG, 0.250" Wide x 0.032" Thick

$0.68 each
$0.68
Sale Sold out

In stock

Delivers Tue. Dec 16 - Thu. Dec 18

106AA021

Pack size
each

Free shipping for $99+ orders

Returns accepted within 90 days

Terminal TypeQuick Disconnect
InsulationFully Insulated
Wire Connection TypeCrimp
GenderFemale
For Wire Gauge22-18
Shape90° Flag
Tab Width0.250"
Tab Thickness0.032"
Insulation ColorRed
Insulation MaterialNylon
Terminal MaterialTin-Plated Brass
Maximum Temperature220° F
Maximum Voltage300V
Specifications MetUL Listed
Country of OriginUnited States

The nylon insulation on these terminals completely covers the electrical connection when mated to help prevent accidental short-circuits with nearby wires and provide durable, chemically-resistant protection. For applications that require easy or frequent maintenance, quick-disconnect terminals join two wires using a male plug and female socket that can be pushed together and pulled apart.

90° flag terminals allow the wire to be perpendicular to the connection, making them convenient for confined spaces.
