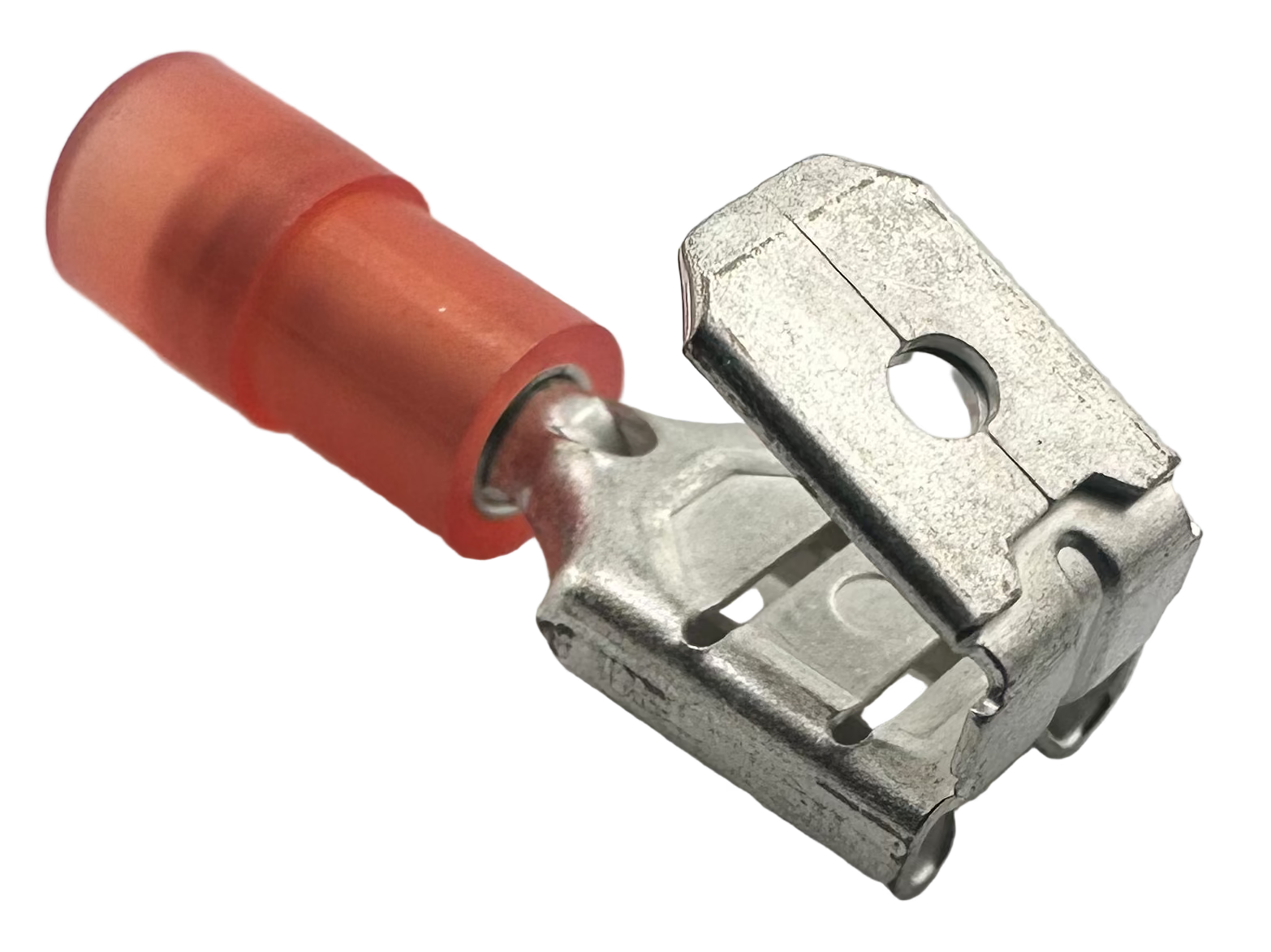

  • Insulated Piggyback Quick-Disconnect Terminals, for 22-18 AWG, 0.250" wide x 0.032" thick, nylon insulation, double crimp

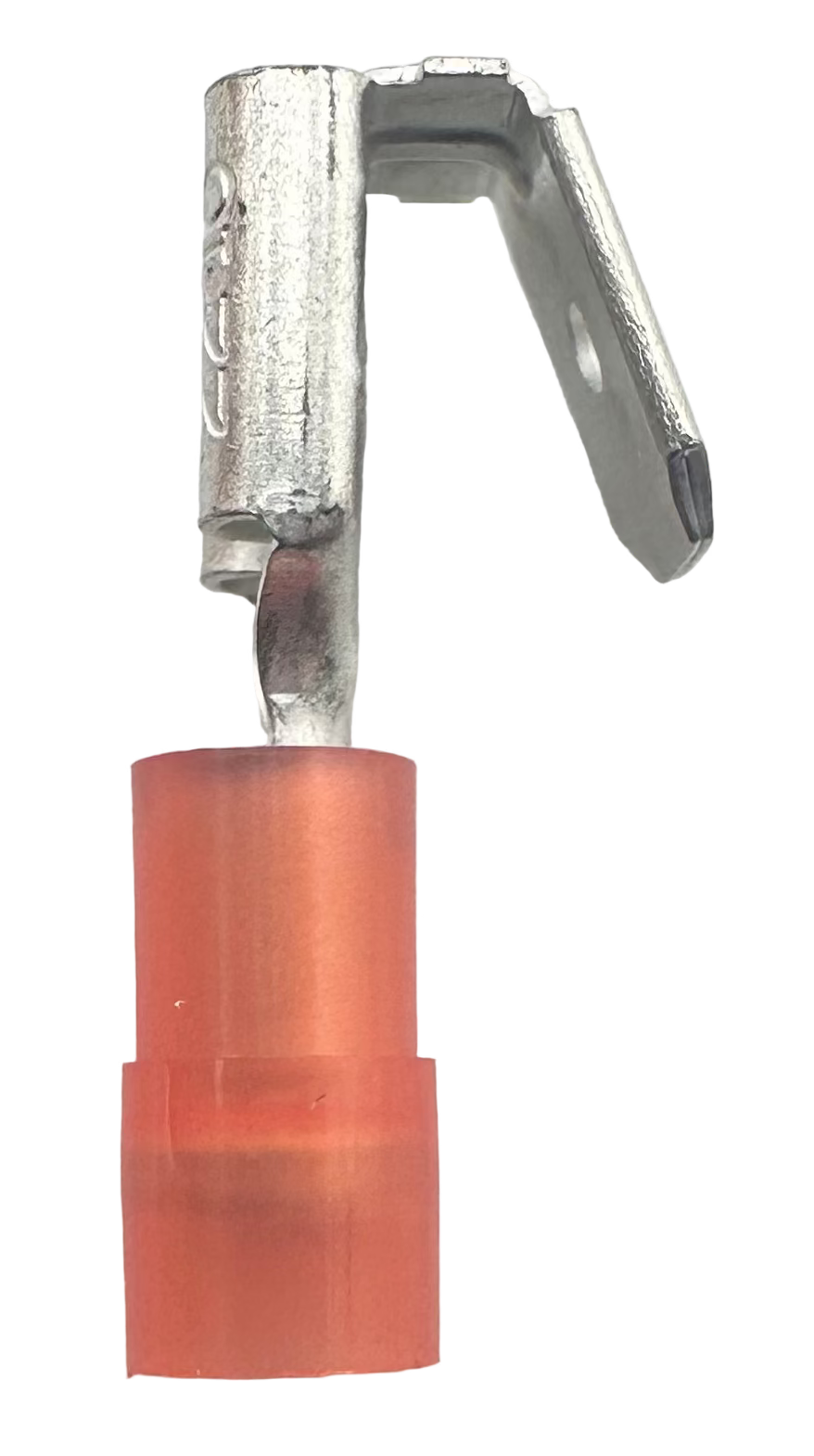

  • Insulated Piggyback Quick-Disconnect Terminals, for 22-18 AWG, 0.250" wide x 0.032" thick, nylon insulation, double crimp straight view
1 2

Insulated Piggyback Quick-Disconnect Terminals
For 22-18 AWG, 0.250" wide x 0.032" thick, nylon insulation, double crimp

Insulated Piggyback Quick-Disconnect Terminals, for 22-18 AWG, 0.250" wide x 0.032" thick, nylon insulation, double crimp

$0.88 each
$0.88
Sale Sold out

In stock

Delivers Mon. Aug 3 - Wed. Aug 5

119AA041

Pack size
each

Free shipping for $99+ orders

Returns accepted within 90 days

Terminal TypeQuick Disconnect
InsulationBarrel Insulated
Wire Connection TypeCrimp
GenderFemale x Male
For Wire Gauge22-18
Shape180° U
Tab Width0.250"
Tab Thickness0.032"
Insulation ColorRed
Insulation MaterialNylon
Crimp TypeDouble
Terminal MaterialTin-Plated Brass
Maximum Temperature220° F
Maximum Voltage300V
Specifications MetUL Listed, C-UL Listed
Country of OriginTaiwan

These quick-disconnect terminals have a male and female tab to create multiple connections. They are convenient for adding additional connections to an existing circuit in applications that require easy electrical maintenance. The barrel is insulated to help prevent accidental short-circuits with nearby wires.

Nylon insulation is more durable and chemically-resistant than vinyl insulation.

Double-crimp terminals have a brass sleeve on the barrel that can be crimped to wire insulation to provide strain relief for the connection.
