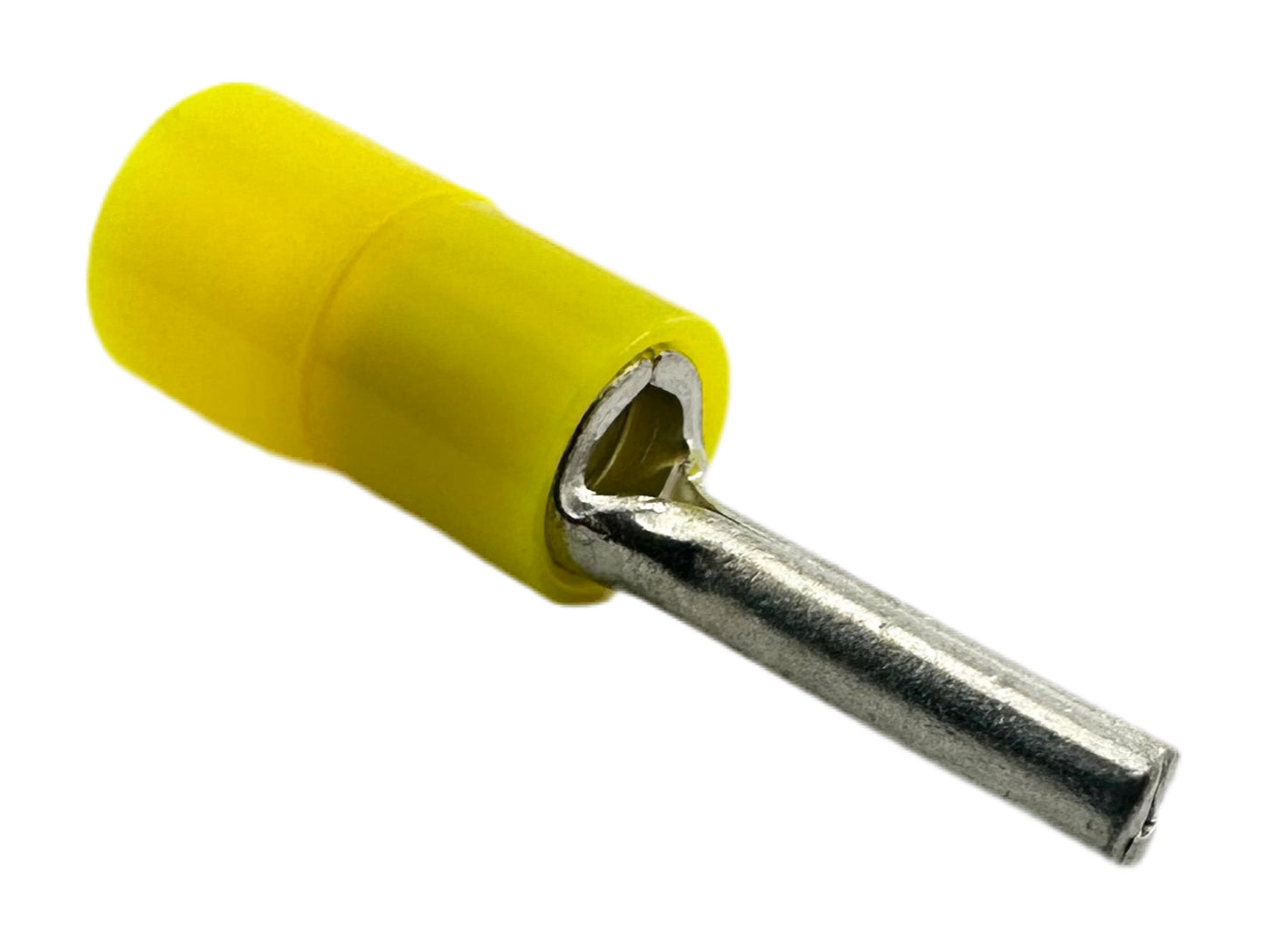

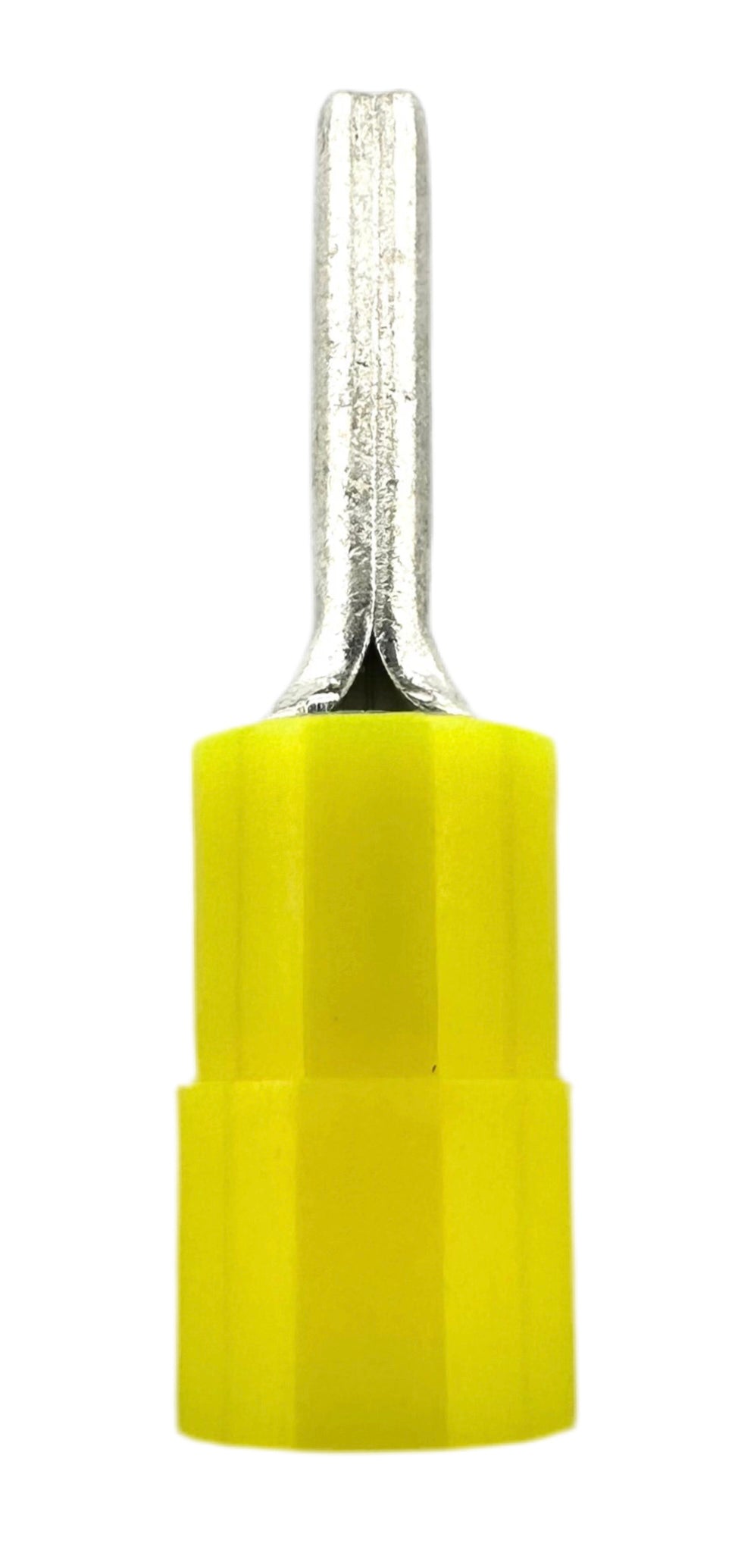

Insulated Pin Terminals

for 12-10 AWG, nylon insulation

Insulated Pin Terminals, for 12-10 AWG, nylon insulation

$1.35 each
$1.35
Sale Sold out

In stock - ships from Chicago warehouse

Delivers Tue. Apr 29 - Thu. May 1

116AA061

Pack size
each

Free shipping for $99+ orders

Returns accepted within 90 days

Terminal TypePin
InsulationBarrel Insulated
Wire Connection TypeCrimp
For Wire Gauge12-10
Pin Length0.47"
Pin Diameter0.10"
Insulation ColorYellow
Insulation MaterialNylon
Terminal MaterialTin-Plated Copper
Maximum Temperature165° F
Maximum Voltage600V
Specifications MetUL Listed, C-UL Listed
Country of OriginUnited States

Use pin terminals to create more secure connections to terminal blocks or screw-clamps than stranded wire. The barrel is insulated to help prevent accidental short-circuits with nearby wires and protect the connection.

Nylon insulation is more durable and chemically-resistant than vinyl insulation.
