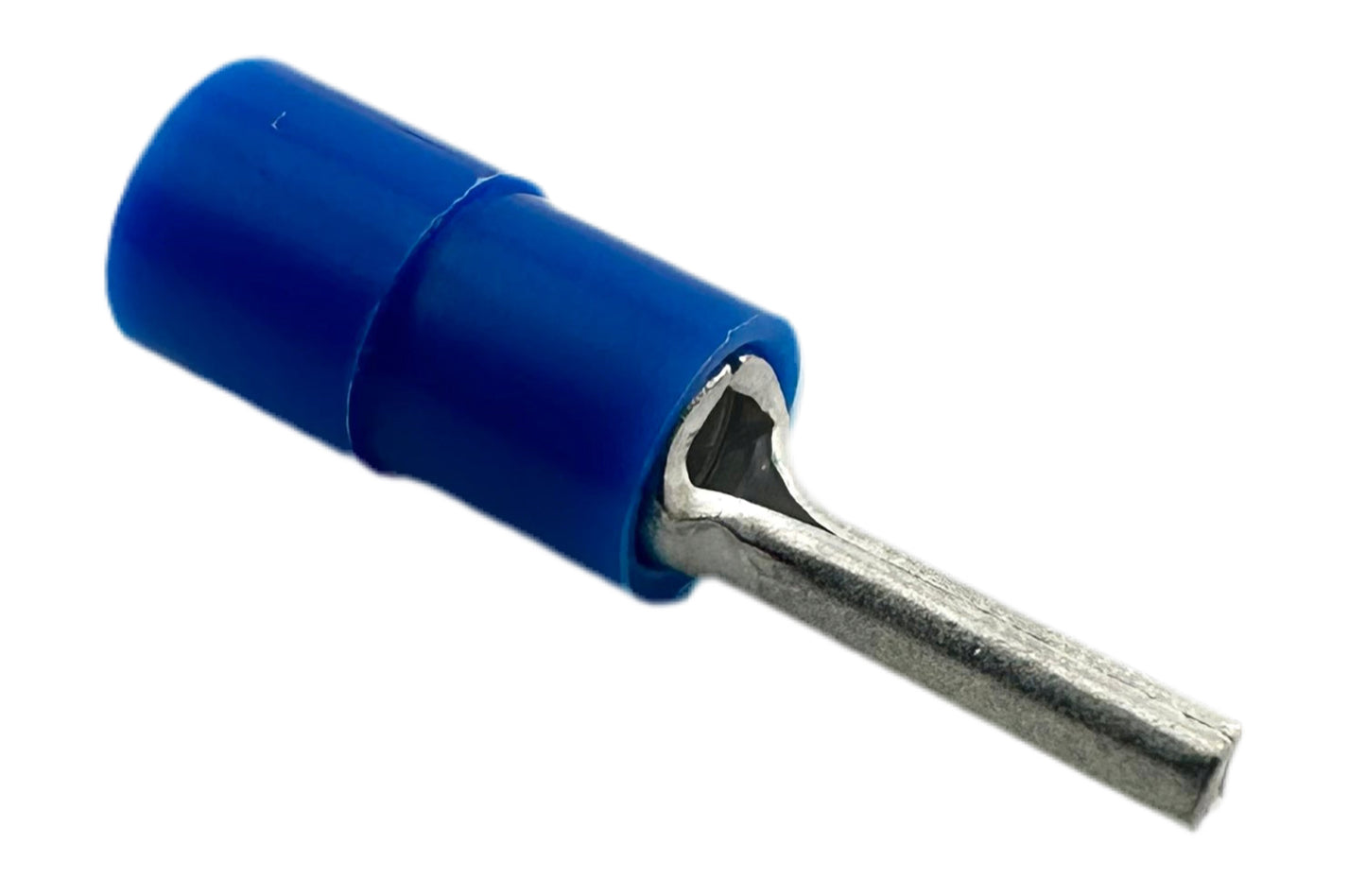

• Insulated Pin Terminals, for 16-14 AWG, nylon insulation

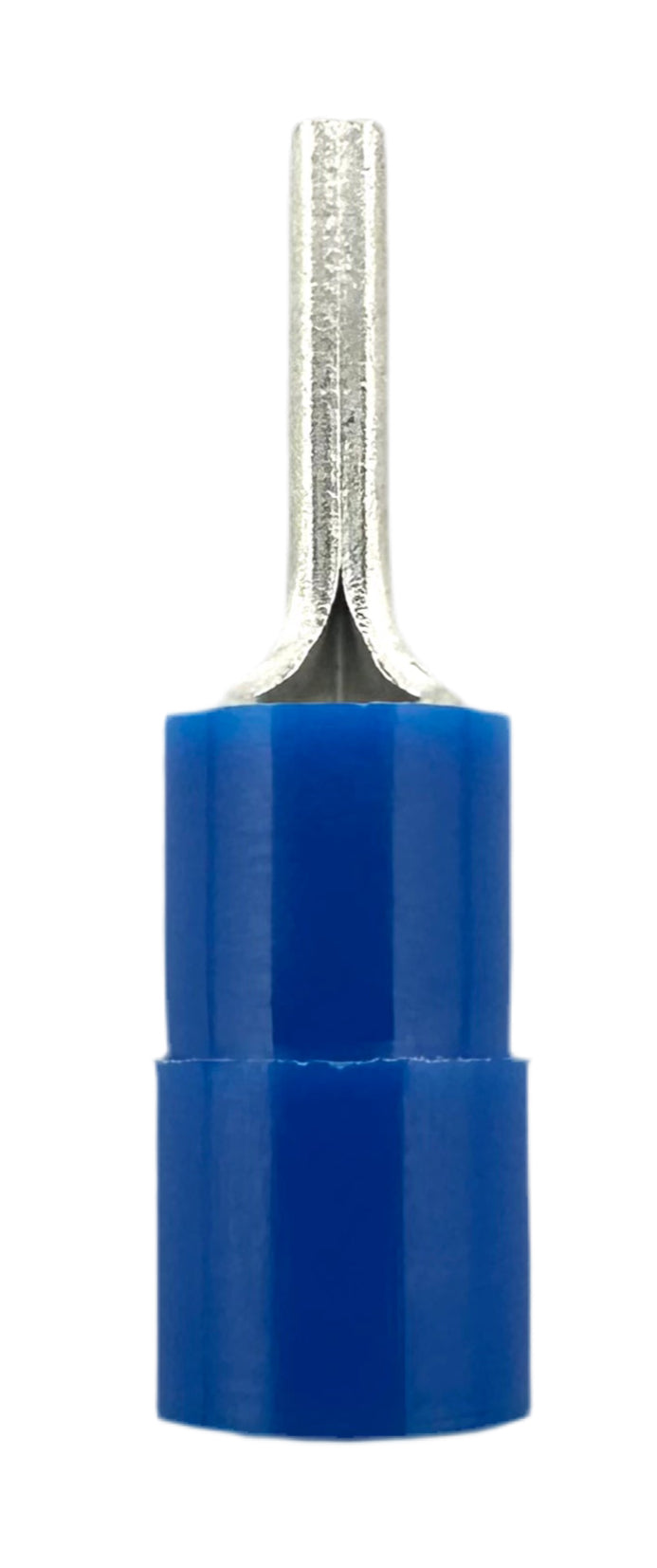

  • Insulated Pin Terminals, for 16-14 AWG, nylon insulation straight view
1 2

Insulated Pin Terminals

for 16-14 AWG, nylon insulation

Insulated Pin Terminals, for 16-14 AWG, nylon insulation

$0.92 each
$0.92
Sale Sold out

In stock - ships from Chicago warehouse

Delivers Tue. Apr 29 - Thu. May 1

116AA051

Pack size
each

Free shipping for $99+ orders

Returns accepted within 90 days

Terminal TypePin
InsulationBarrel Insulated
Wire Connection TypeCrimp
For Wire Gauge16-14
Pin Length0.35"
Pin Diameter0.07"
Insulation ColorBlue
Insulation MaterialNylon
Terminal MaterialTin-Plated Copper
Maximum Temperature165° F
Maximum Voltage600V
Specifications MetUL Listed, C-UL Listed
Country of OriginUnited States

Use pin terminals to create more secure connections to terminal blocks or screw-clamps than stranded wire. The barrel is insulated to help prevent accidental short-circuits with nearby wires and protect the connection.

Nylon insulation is more durable and chemically-resistant than vinyl insulation.
