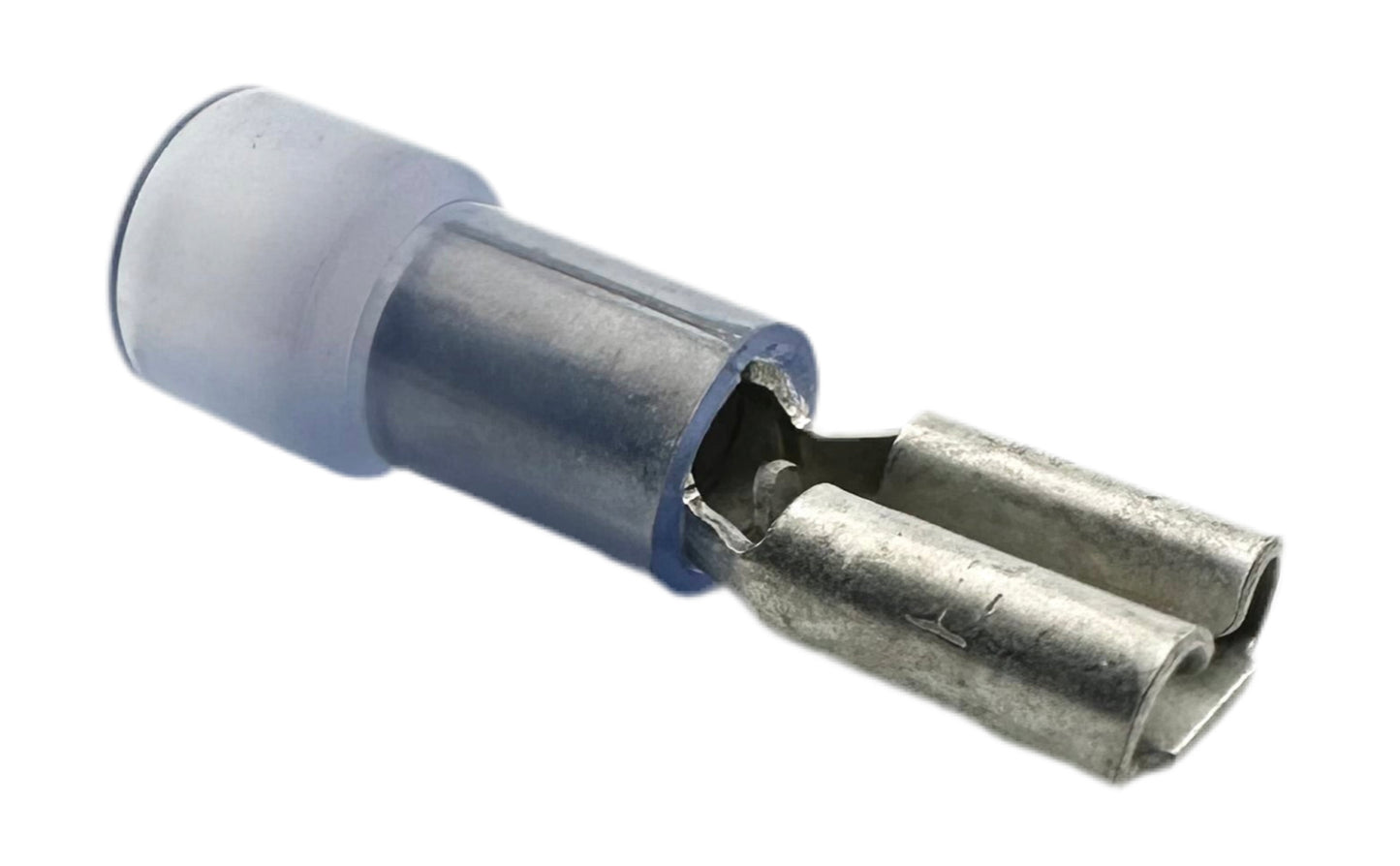

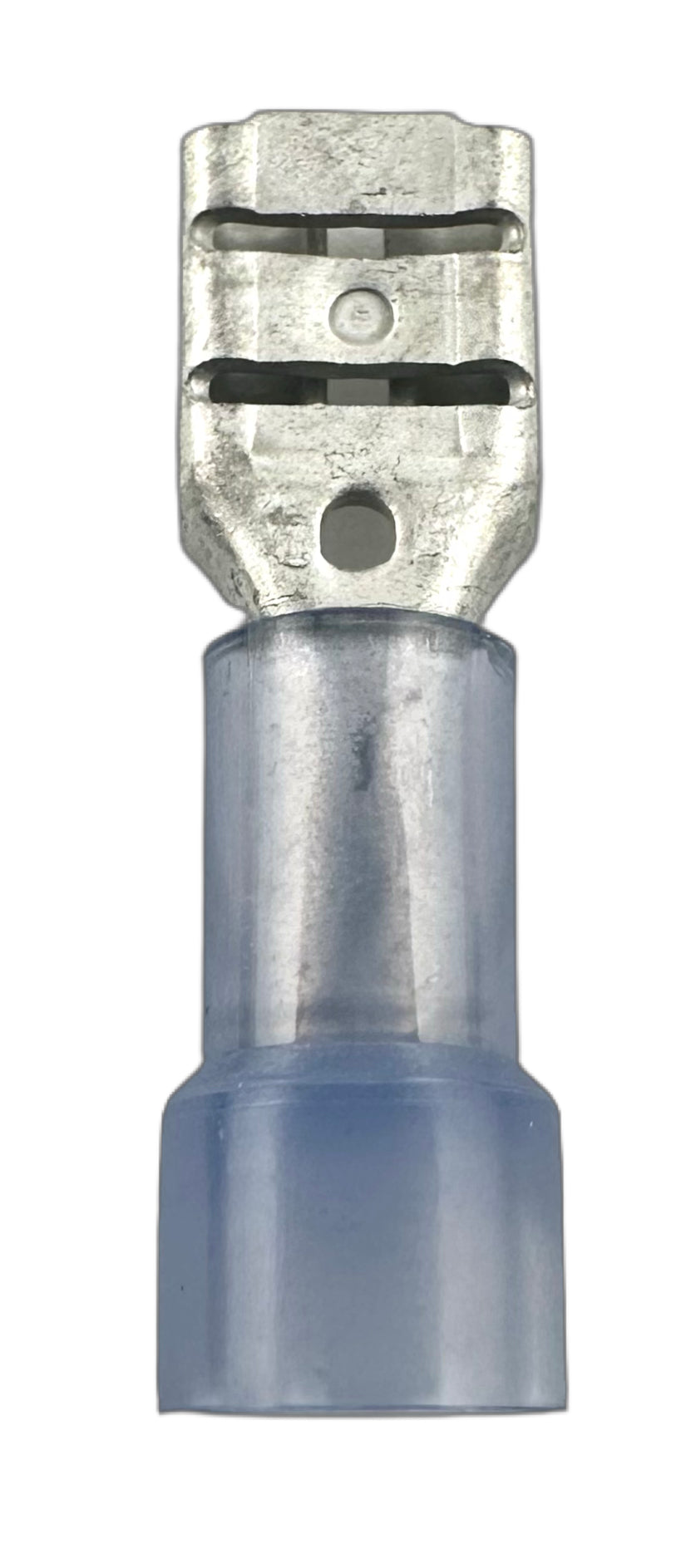

Insulated Quick-Disconnect Terminals

Female, for 16-14 AWG, 0.187" Wide x 0.020" Thick

Insulated Quick-Disconnect Terminals, Female, for 16-14 AWG, 0.187" Wide x 0.020" Thick

$18.51 per pack of 100
$18.51
Sale Sold out

In stock - ships from Chicago warehouse

Delivers Mon. Apr 7 - Wed. Apr 9

105AA03

packs of 100

Free shipping for $99+ orders

Returns accepted within 90 days

Terminal TypeQuick Disconnect
InsulationBarrel Insulated
Wire Connection TypeCrimp
GenderFemale
For Wire Gauge16-14
ShapeStraight
Tab Width0.187"
Tab Thickness0.020"
Insulation ColorBlue
Insulation MaterialNylon
Terminal MaterialTin-Plated Brass
Maximum Temperature165° F
Maximum Voltage300V
Package Quantity100
Country of OriginUnited States

These have nylon insulation on the barrel to help prevent accidental short-circuits with nearby wires and provide durable, chemically-resistant protection to the wire connection. For applications that require easy or frequent electrical maintenance, quick-disconnect terminals join two wires using a male plug and female socket that can be pushed together and pulled apart.
