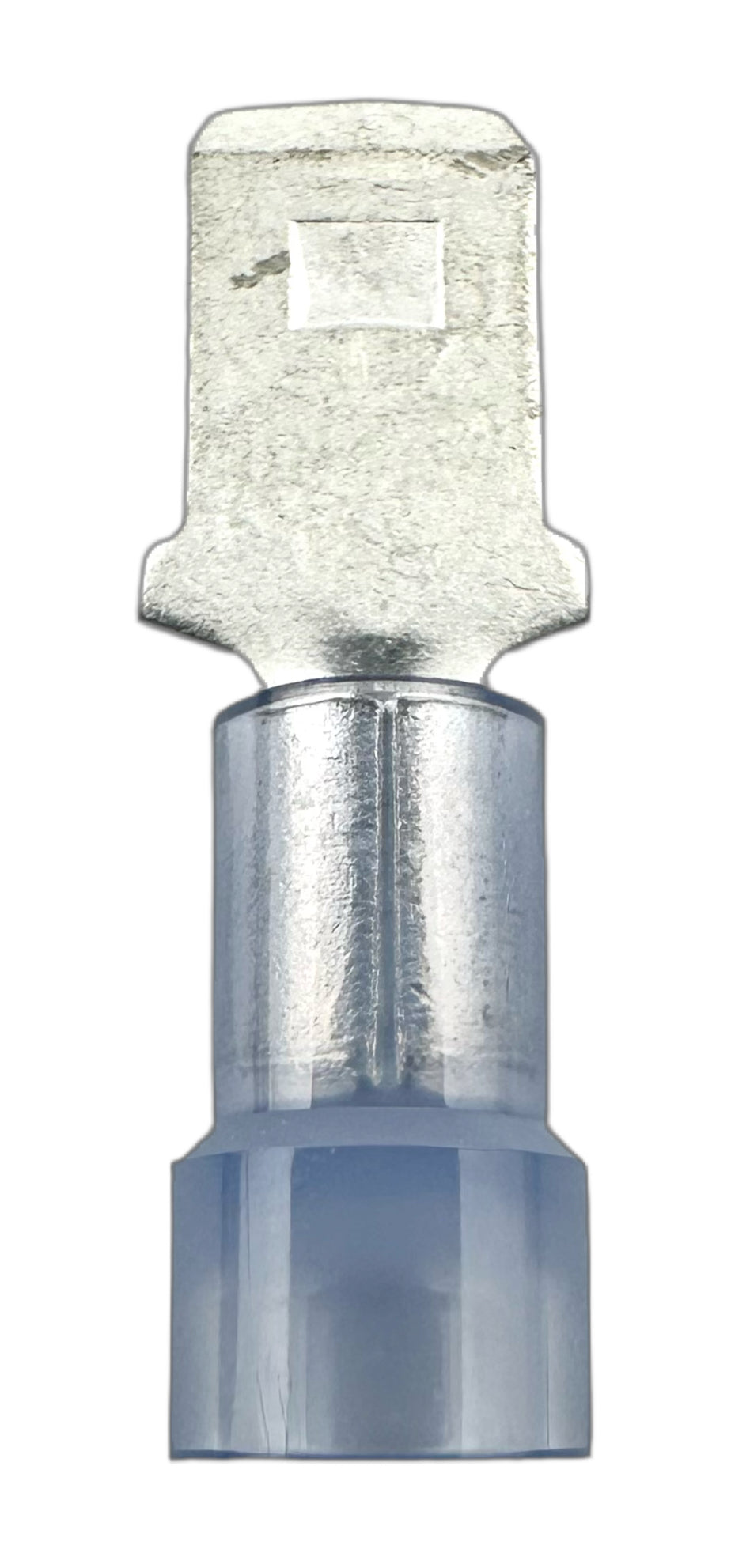

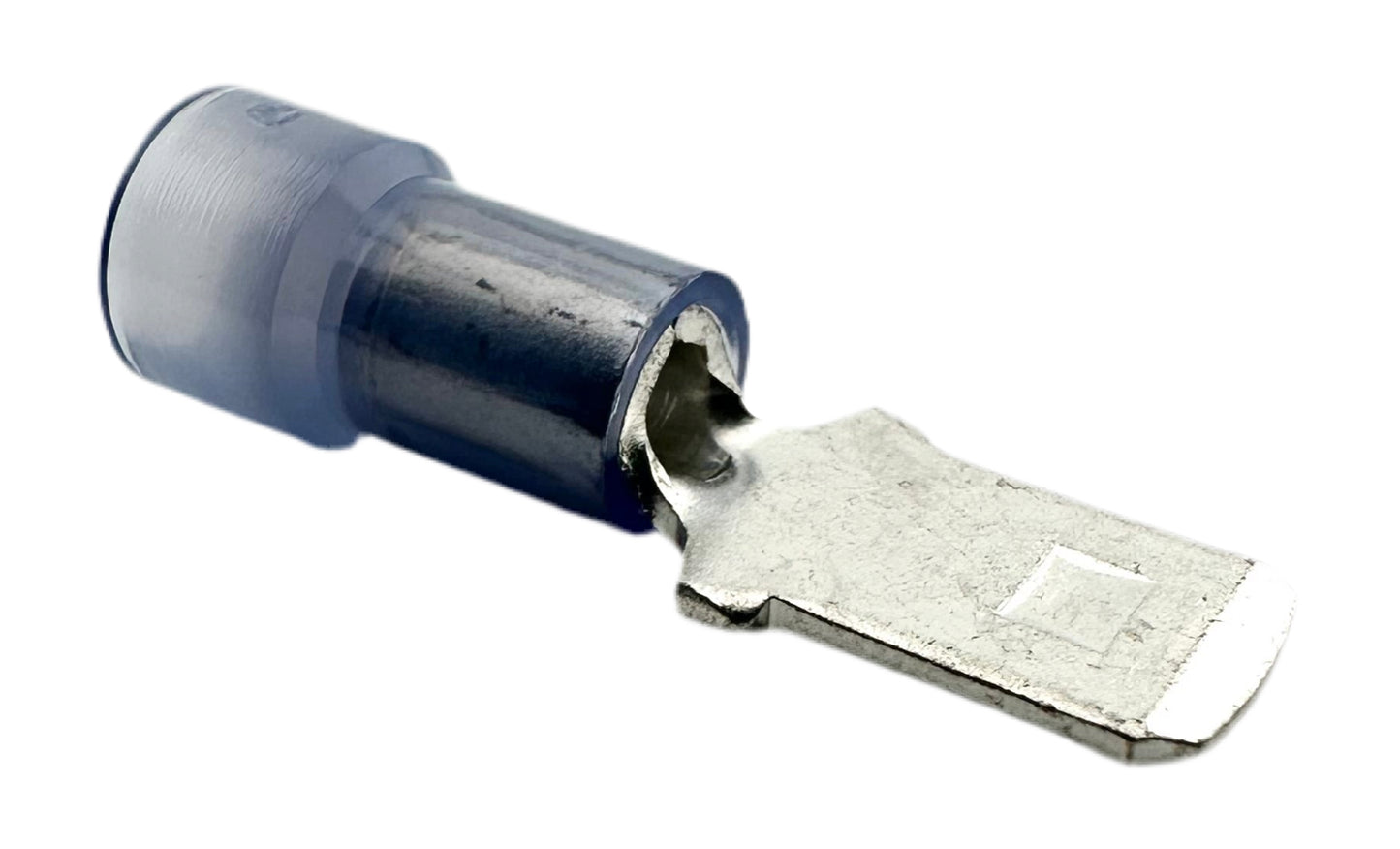

Insulated Quick-Disconnect Terminals
Male, for 16-14 AWG, 0.250" Wide x 0.032" Thick

Insulated Quick-Disconnect Terminals, Male, for 16-14 AWG, 0.250" Wide x 0.032" Thick

$0.64 each
$0.64
Sale Sold out

In stock

Delivers Wed. Oct 15 - Fri. Oct 17

105AA091

Pack size
each

Free shipping for $99+ orders

Returns accepted within 90 days

Terminal TypeQuick Disconnect
InsulationBarrel Insulated
Wire Connection TypeCrimp
GenderMale
For Wire Gauge16-14
ShapeStraight
Tab Width0.250"
Tab Thickness0.032"
Insulation ColorBlue
Insulation MaterialNylon
Terminal MaterialTin-Plated Brass
Maximum Temperature165° F
Maximum Voltage300V
Specifications MetUL Listed
Country of OriginUnited States

These have nylon insulation on the barrel to help prevent accidental short-circuits with nearby wires and provide durable, chemically-resistant protection to the wire connection. For applications that require easy or frequent electrical maintenance, quick-disconnect terminals join two wires using a male plug and female socket that can be pushed together and pulled apart.
