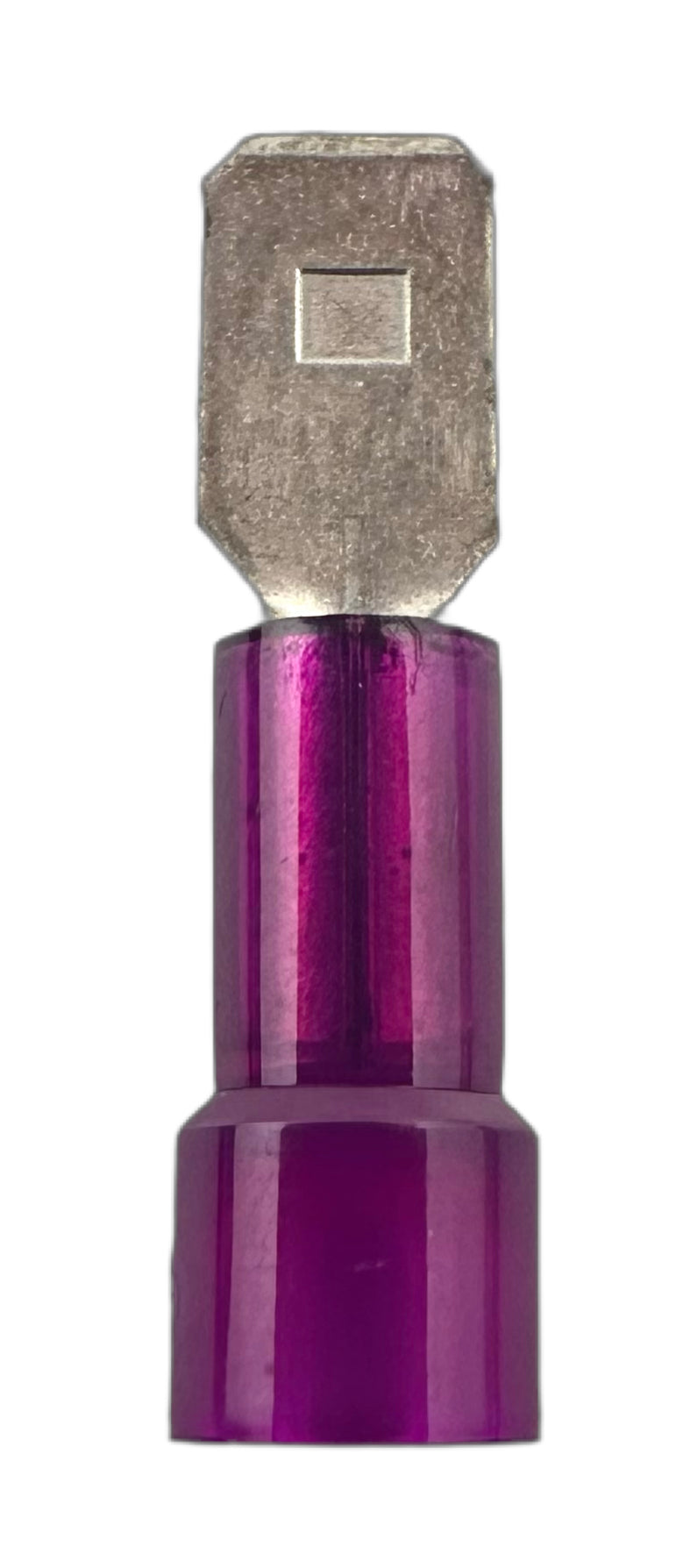

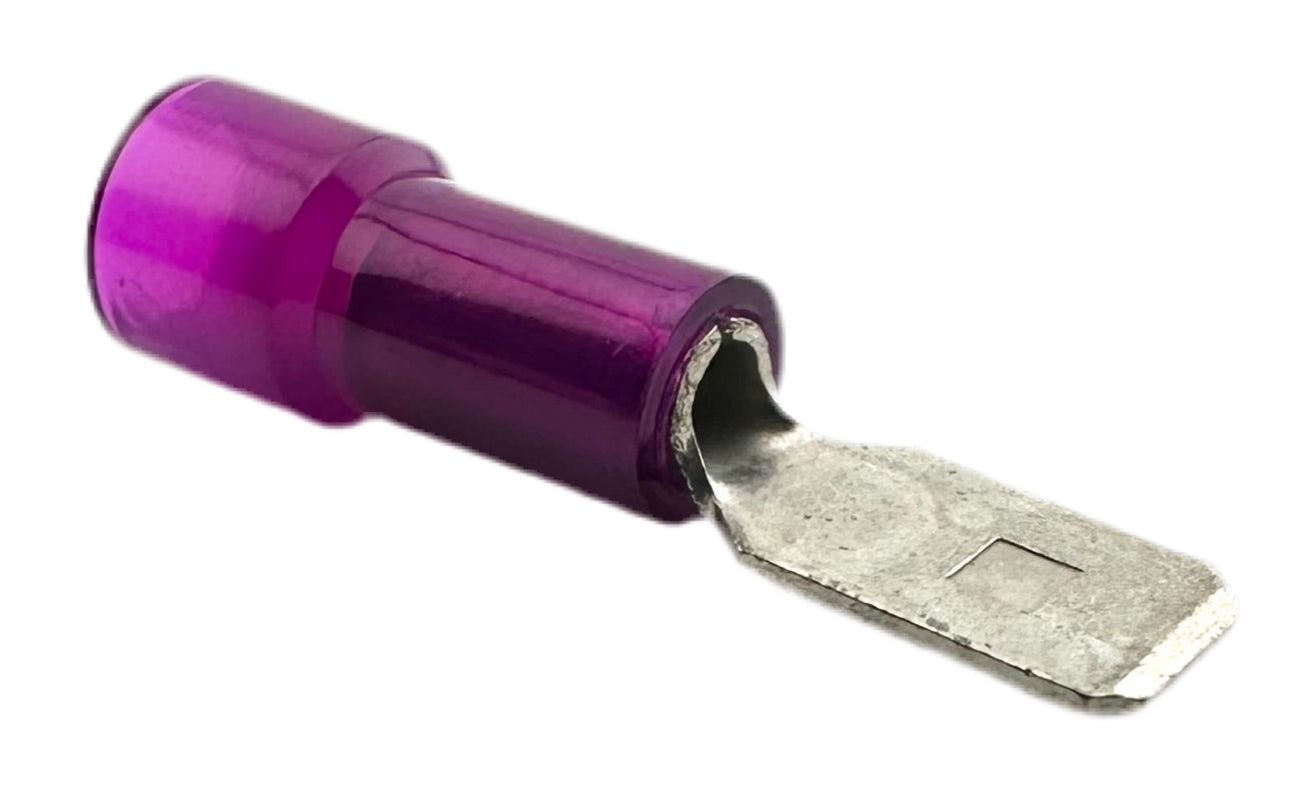

Insulated Quick-Disconnect Terminals
Male, for 22-18 AWG, 0.187" Wide x 0.020" Thick

Insulated Quick-Disconnect Terminals, Male, for 22-18 AWG, 0.187" Wide x 0.020" Thick

$0.62 each
$0.62
Sale Sold out

In stock

Delivers Wed. Oct 15 - Fri. Oct 17

105AA061

Pack size
each

Free shipping for $99+ orders

Returns accepted within 90 days

Terminal TypeQuick Disconnect
InsulationBarrel Insulated
Wire Connection TypeCrimp
GenderMale
For Wire Gauge22-18
ShapeStraight
Tab Width0.187"
Tab Thickness0.020"
Insulation ColorRed
Insulation MaterialNylon
Terminal MaterialTin-Plated Brass
Maximum Temperature165° F
Maximum Voltage300V
Country of OriginUnited States

These have nylon insulation on the barrel to help prevent accidental short-circuits with nearby wires and provide durable, chemically-resistant protection to the wire connection. For applications that require easy or frequent electrical maintenance, quick-disconnect terminals join two wires using a male plug and female socket that can be pushed together and pulled apart.
