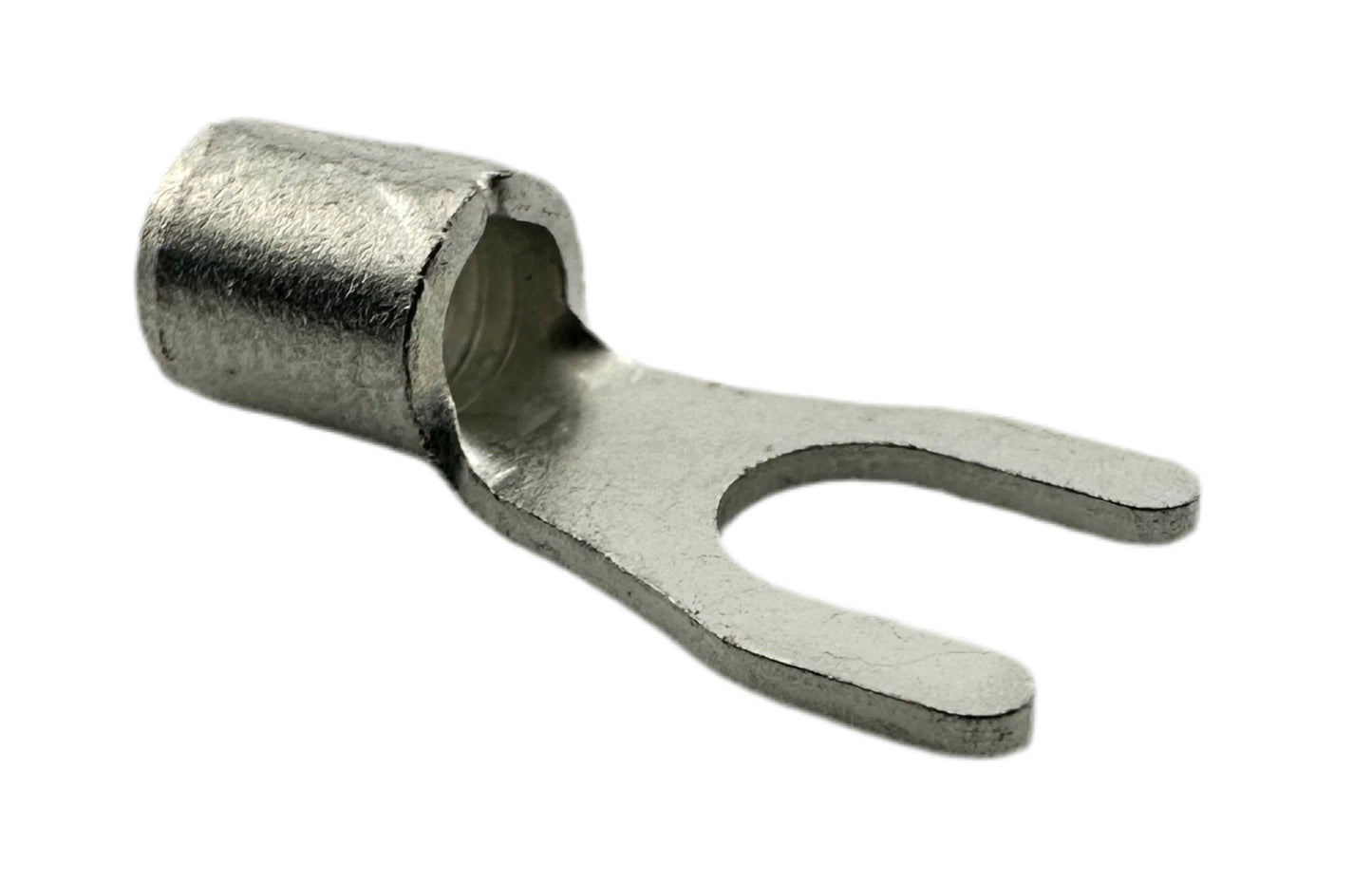

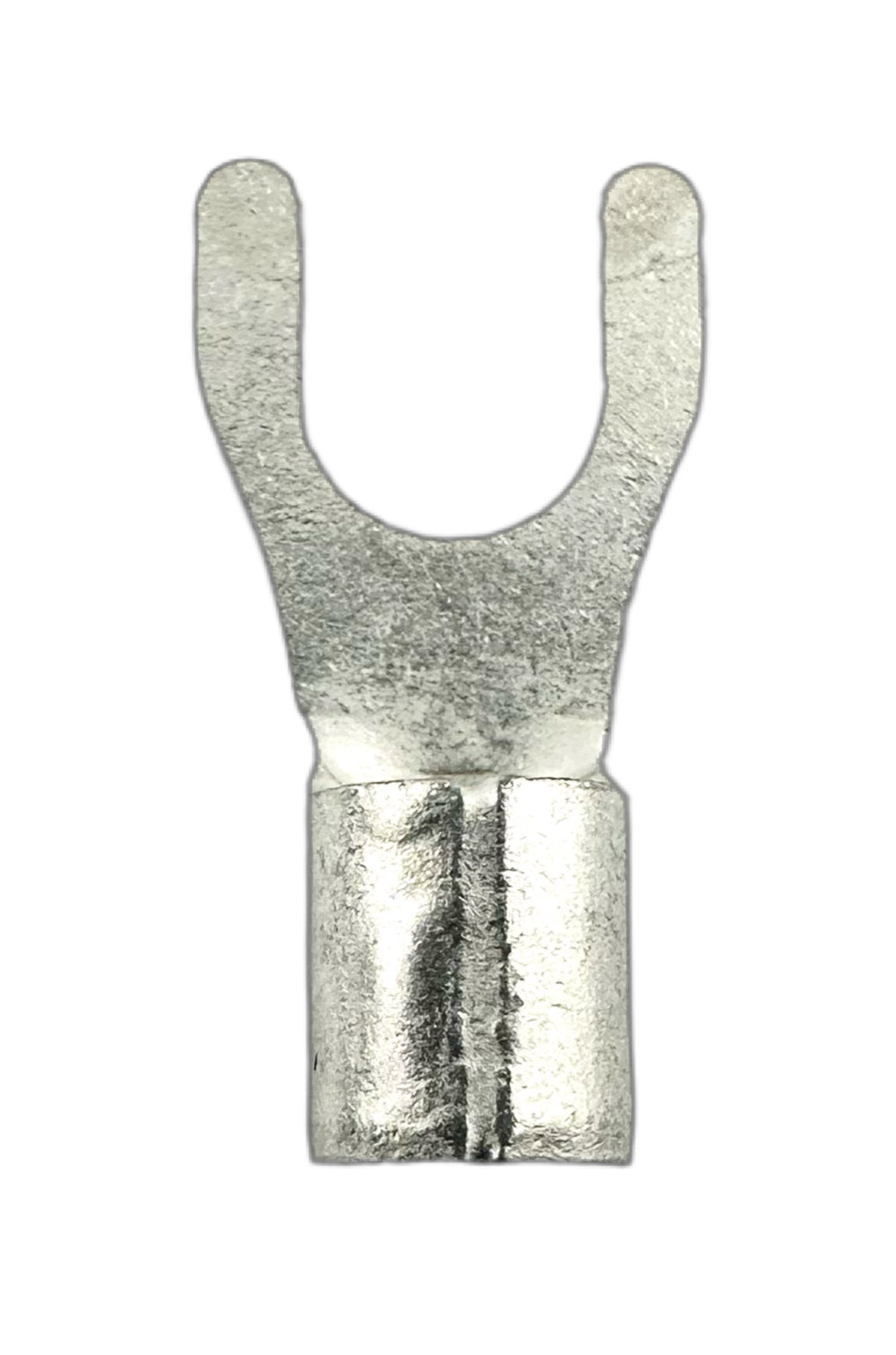

Noninsulated Spade Terminals
for 12-10 AWG and #10 screw
Noninsulated Spade Terminals, for 12-10 AWG and #10 screw
Regular price
$0.82 each
Regular price
Sale price
$0.82
Unit price
/
per
In stock - ships from Chicago warehouse
Delivers Mon. Apr 7 - Wed. Apr 9
SKU:109AA081
each
Free shipping for $99+ orders
Returns accepted within 90 days
Terminal Type | Spade |
Insulation | Noninsulated |
Wire Connection Type | Crimp |
For Wire Gauge | 12-10 |
For Screw Size | #10 |
Spade Width | 0.37" |
Spade Thickness | 0.04" |
Terminal Material | Tin-Plated Copper |
Maximum Temperature | 345° F |
Maximum Voltage | 600V |
Specifications Met | UL Listed, CSA Certified |
Country of Origin | United States |
These spade terminals, also known as fork terminals, have no insulation, so you can crimp the barrel more precisely and are suited for applications where the connection will not be inadvertently touched. The spade's prongs can be quickly installed around a loosened screw or stud without having to completely remove it.
