Insulated Pin Terminals
Use pin terminals to create more secure connections to terminal blocks or screw-clamps than stranded wire. The barrel is insulated to help prevent accidental short-circuits with nearby wires and protect the connection.
Nylon insulation is more durable and chemically-resistant than vinyl insulation.
| For Wire Gauge | Pin Lg. | Pin Dia. | Insulation Color | Terminal Material | Max. Temp. | Max. Voltage | Specifications Met | Each | Pkg. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Vinyl Insulation |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

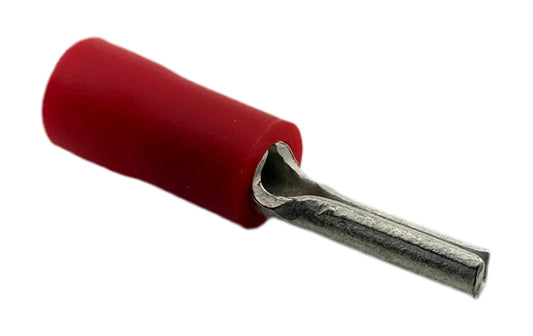

| 22-18 | 0.35" | 0.07" | Red | Tin-Plated Copper | 165° F | 600V | UL Listed, C-UL Listed | 116AA01 | $0.62 | $10.40 / pack of 50 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

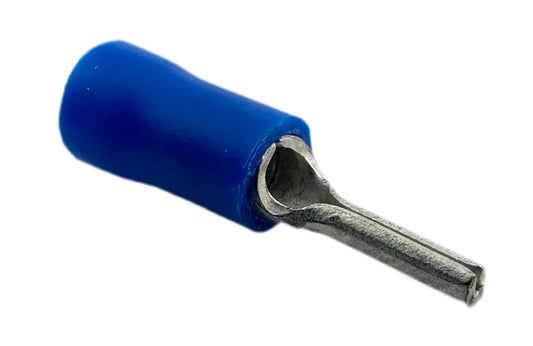

| 16-14 | 0.31" | 0.07" | Blue | Tin-Plated Copper | 165° F | 600V | UL Listed, C-UL Listed | 116AA02 | $0.74 | $12.27 / pack of 50 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

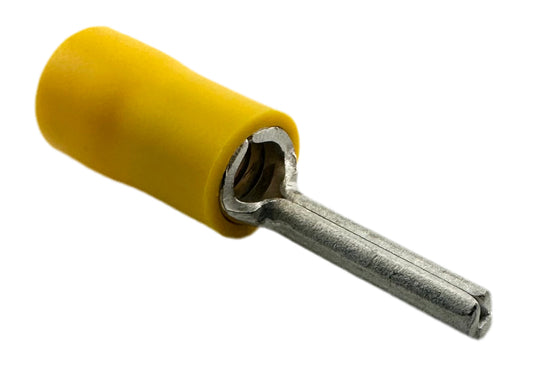

| 12-10 | 0.47" | 0.10" | Yellow | Tin-Plated Copper | 165° F | 600V | UL Listed, C-UL Listed | 116AA03 | $0.85 | $14.10 / pack of 50 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Nylon Insulation |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

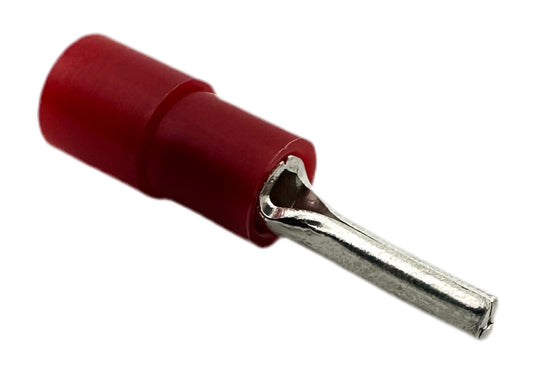

| 22-18 | 0.35" | 0.07" | Red | Tin-Plated Copper | 165° F | 600V | UL Listed, C-UL Listed | 116AA04 | $0.99 | $16.53 / pack of 50 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

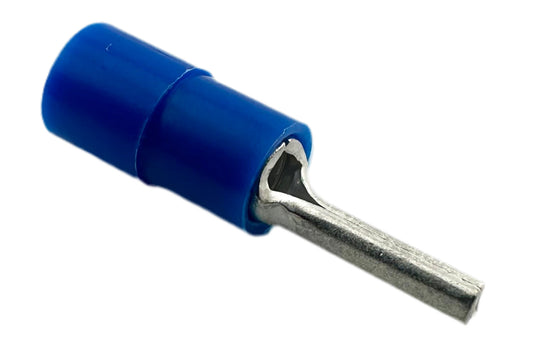

| 16-14 | 0.35" | 0.07" | Blue | Tin-Plated Copper | 165° F | 600V | UL Listed, C-UL Listed | 116AA05 | $0.92 | $15.35 / pack of 50 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

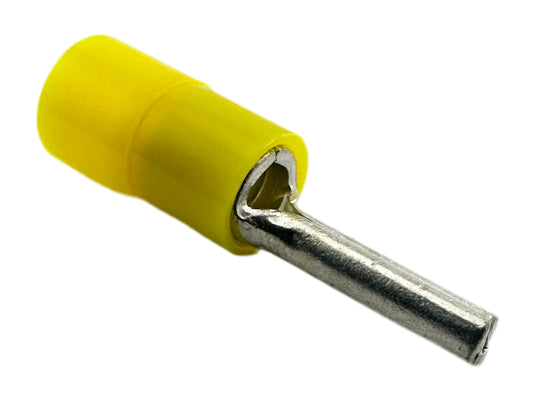

| 12-10 | 0.47" | 0.10" | Yellow | Tin-Plated Copper | 165° F | 600V | UL Listed, C-UL Listed | 116AA06 | $1.35 | $22.58 / pack of 50 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-
For 22-18 AWG
Regular price From $0.62 eachRegular priceUnit price per -
For 16-14 AWG
Regular price From $0.74 eachRegular priceUnit price per -
For 12-10 AWG
Regular price From $0.85 eachRegular priceUnit price per -
For 22-18 AWG
Regular price From $0.99 eachRegular priceUnit price per -
For 16-14 AWG
Regular price From $0.92 eachRegular priceUnit price per -
For 12-10 AWG
Regular price From $1.35 eachRegular priceUnit price per
Vinyl Insulation
Nylon Insulation
