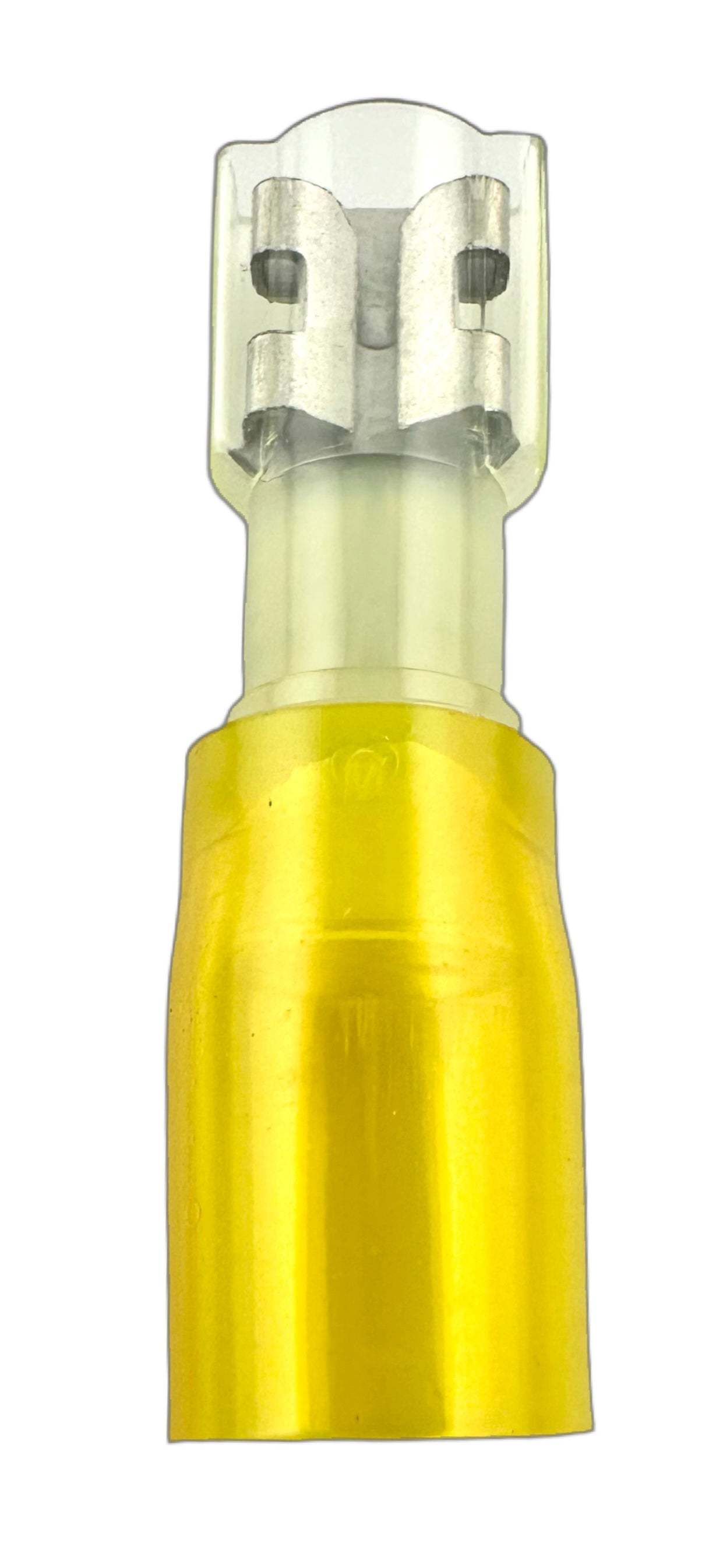

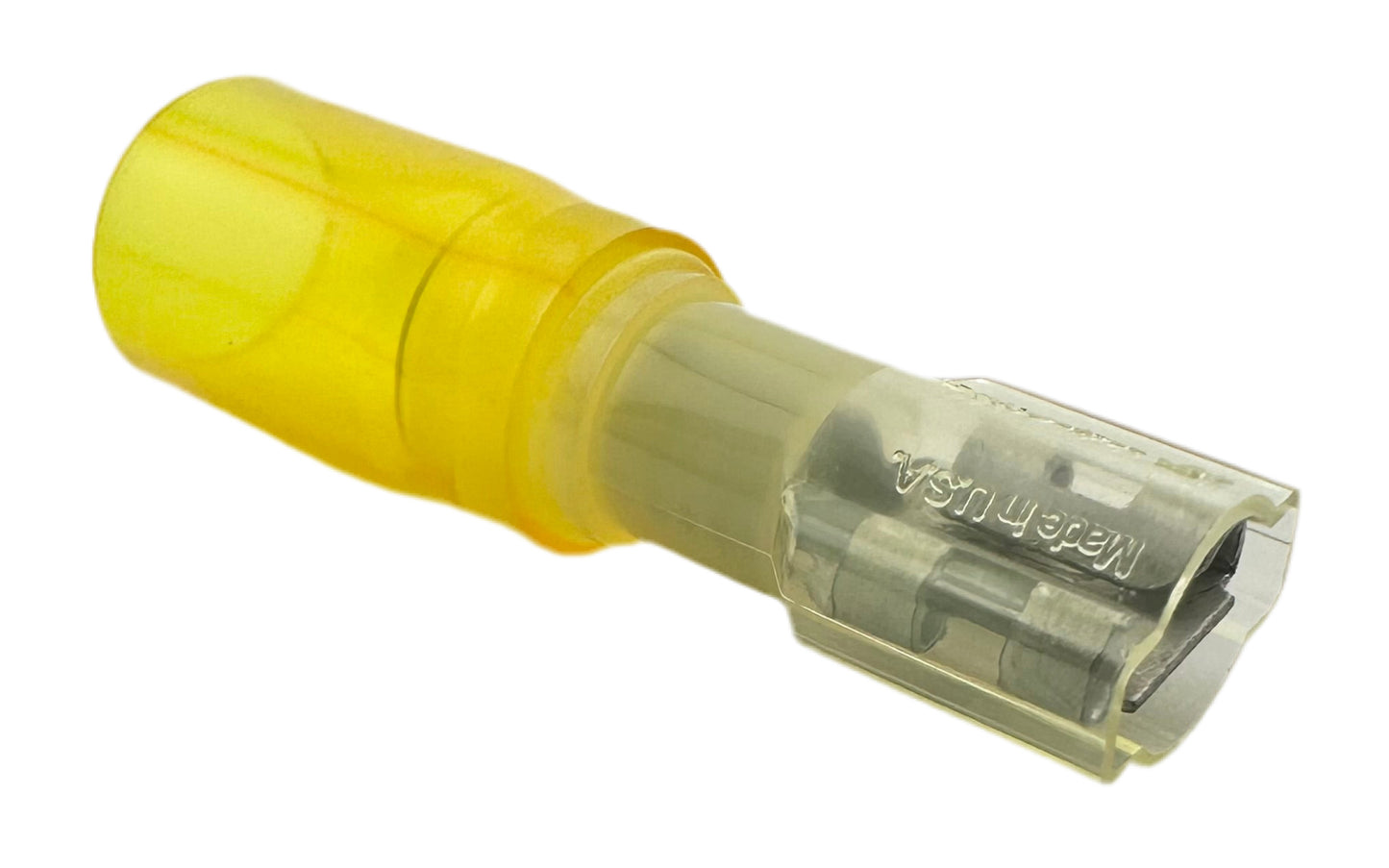

Fully Insulated Heat-Shrink Quick-Disconnect Terminals
Female, for 12-10 AWG, 0.250" Wide x 0.032" Thick
Fully Insulated Heat-Shrink Quick-Disconnect Terminals, Female, for 12-10 AWG, 0.250" Wide x 0.032" Thick
Regular price
$28.27 per pack of 25
Regular price
Sale price
$28.27
Unit price
/
per
In stock - ships from Chicago warehouse
Delivers Mon. Apr 7 - Wed. Apr 9
SKU:104AA03
packs of 25
Free shipping for $99+ orders
Returns accepted within 90 days
Terminal Type | Quick Disconnect |
Insulation | Fully Insulated |
Wire Connection Type | Crimp |
Gender | Female |
For Wire Gauge | 12-10 |
Shape | Straight |
Tab Width | 0.250" |
Tab Thickness | 0.032" |
Insulation Color | Yellow |
Insulation Material | Adhesive heat-shrink |
Terminal Material | Tin-Plated Brass |
Maximum Temperature | 255° F |
Maximum Voltage | 300V |
Package Quantity | 25 |
Country of Origin | United States |
When heat is applied to these terminals, the adhesive insulation on the wire side shrinks to seal out out water and contaminants that could cause corrosion. Additional nylon insulation completely covers the electrical connection when mated to help prevent accidental short-circuits with nearby wires and provide durable, chemically-resistant protection. For applications that require easy or frequent maintenance, quick-disconnect terminals join two wires using a male plug and female socket that can be pushed together and pulled apart.
