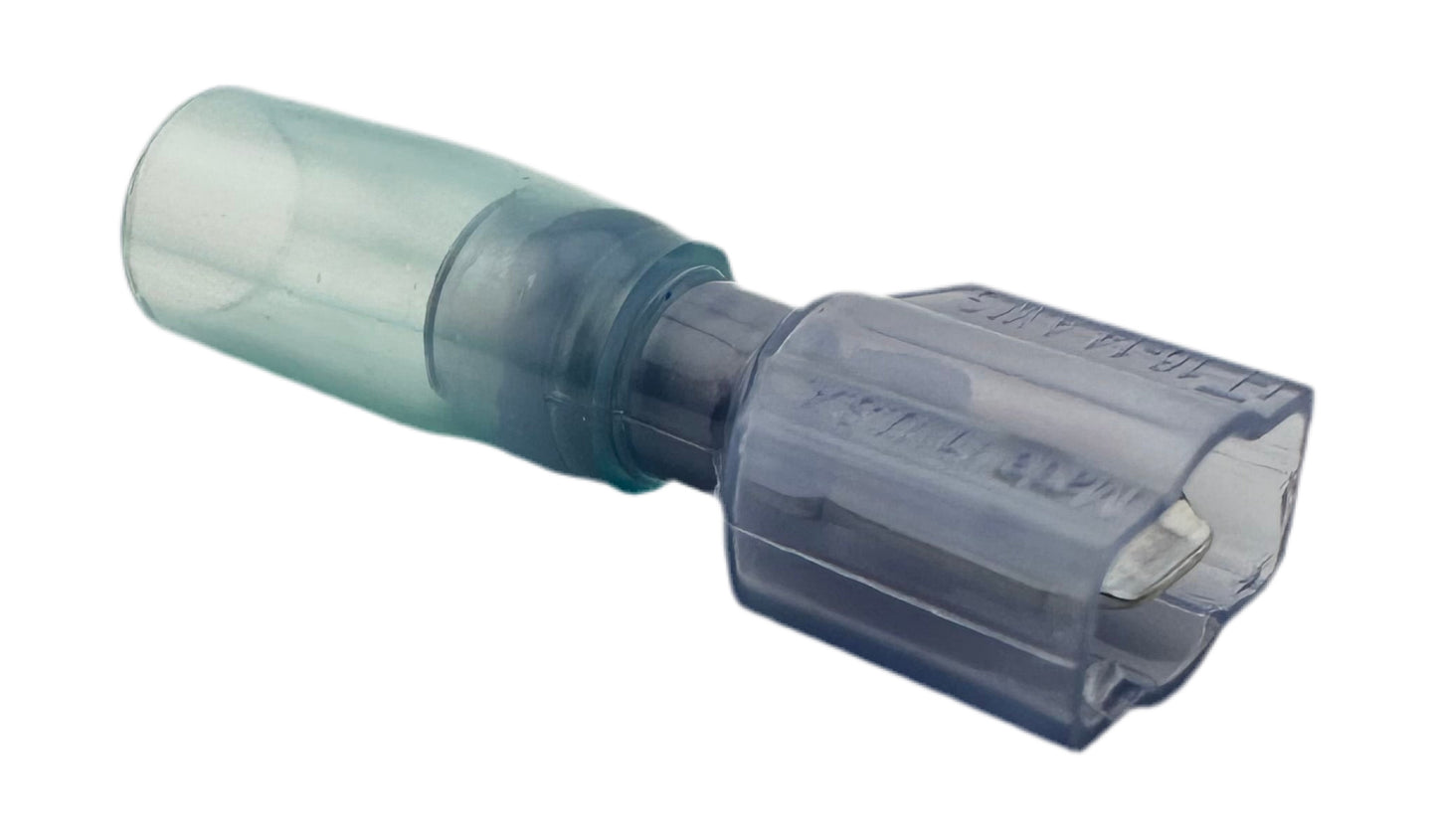

Fully Insulated Heat-Shrink Quick-Disconnect Terminals
Male, for 16-14 AWG, 0.250" Wide x 0.032" Thick

Fully Insulated Heat-Shrink Quick-Disconnect Terminals, Male, for 16-14 AWG, 0.250" Wide x 0.032" Thick

$1.69 each
$1.69
Sale Sold out

In stock

Delivers Wed. Oct 15 - Fri. Oct 17

104AA051

Pack size
each

Free shipping for $99+ orders

Returns accepted within 90 days

Terminal TypeQuick Disconnect
InsulationFully Insulated
Wire Connection TypeCrimp
GenderMale
For Wire Gauge16-14
ShapeStraight
Tab Width0.250"
Tab Thickness0.032"
Insulation ColorBlue
Insulation MaterialAdhesive heat-shrink
Terminal MaterialTin-Plated Brass
Maximum Temperature255° F
Maximum Voltage300V
Country of OriginUnited States

When heat is applied to these terminals, the adhesive insulation on the wire side shrinks to seal out out water and contaminants that could cause corrosion. Additional nylon insulation completely covers the electrical connection when mated to help prevent accidental short-circuits with nearby wires and provide durable, chemically-resistant protection. For applications that require easy or frequent maintenance, quick-disconnect terminals join two wires using a male plug and female socket that can be pushed together and pulled apart.
