Insulated Spade Terminals
for 12-10 AWG and #8 screw
Insulated Spade Terminals, for 12-10 AWG and #8 screw
Regular price
$21.56 per pack of 50
Regular price
Sale price
$21.56
Unit price
/
per
In stock - ships from Chicago warehouse
Delivers Tue. Apr 8 - Thu. Apr 10
SKU:108AA07
packs of 50
Free shipping for $99+ orders
Returns accepted within 90 days
Terminal Type | Spade |
Insulation | Barrel Insulated |
Wire Connection Type | Crimp |
For Wire Gauge | 12-10 |
For Screw Size | #8 |
Spade Width | 0.35" |
Spade Thickness | 0.04" |
Insulation Color | Yellow |
Insulation Material | Nylon |
Terminal Material | Tin-Plated Copper |
Maximum Temperature | 165° F |
Maximum Voltage | 600V |
Specifications Met | UL Listed, CSA Certified |
Package Quantity | 50 |
Country of Origin | United States |

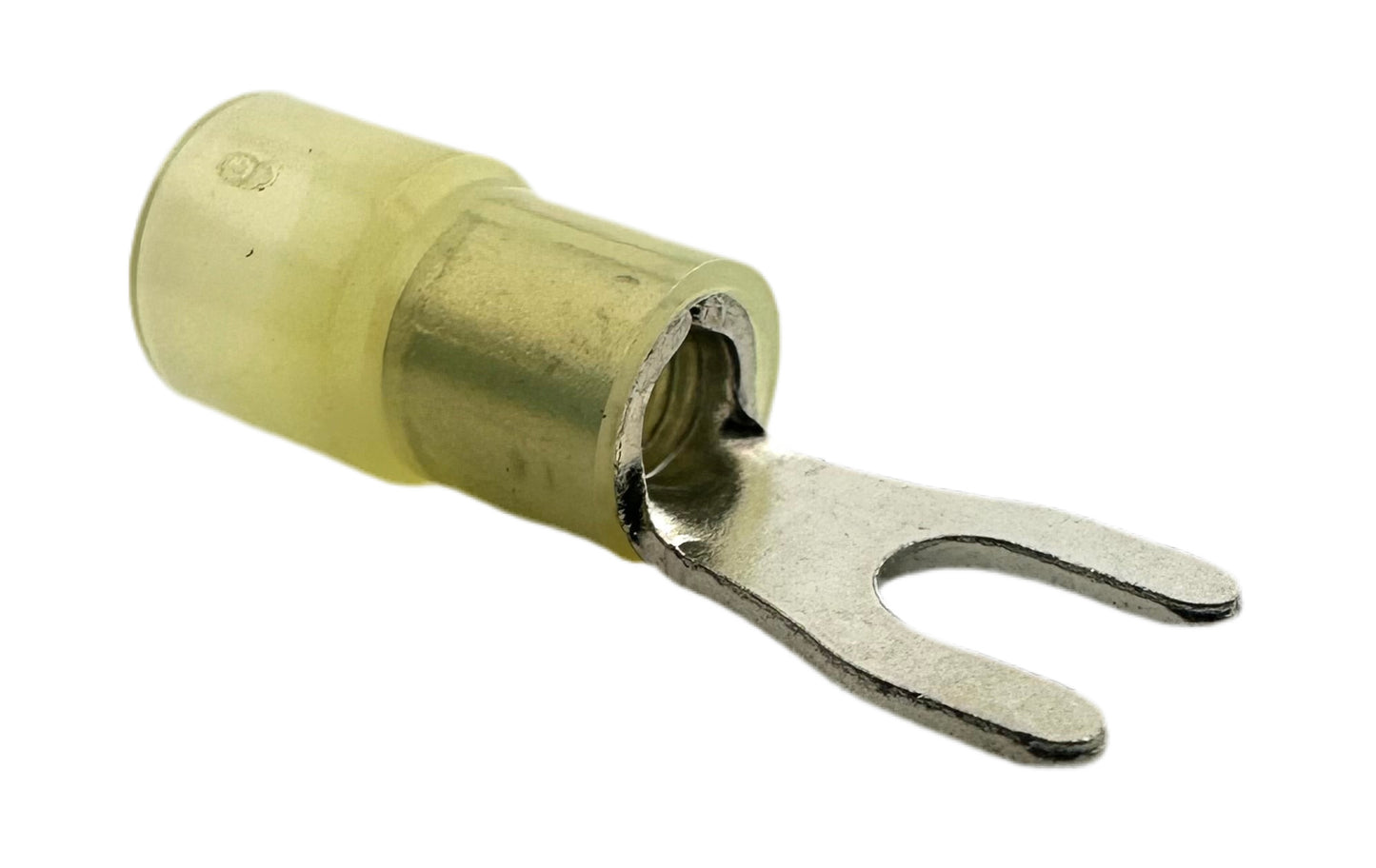

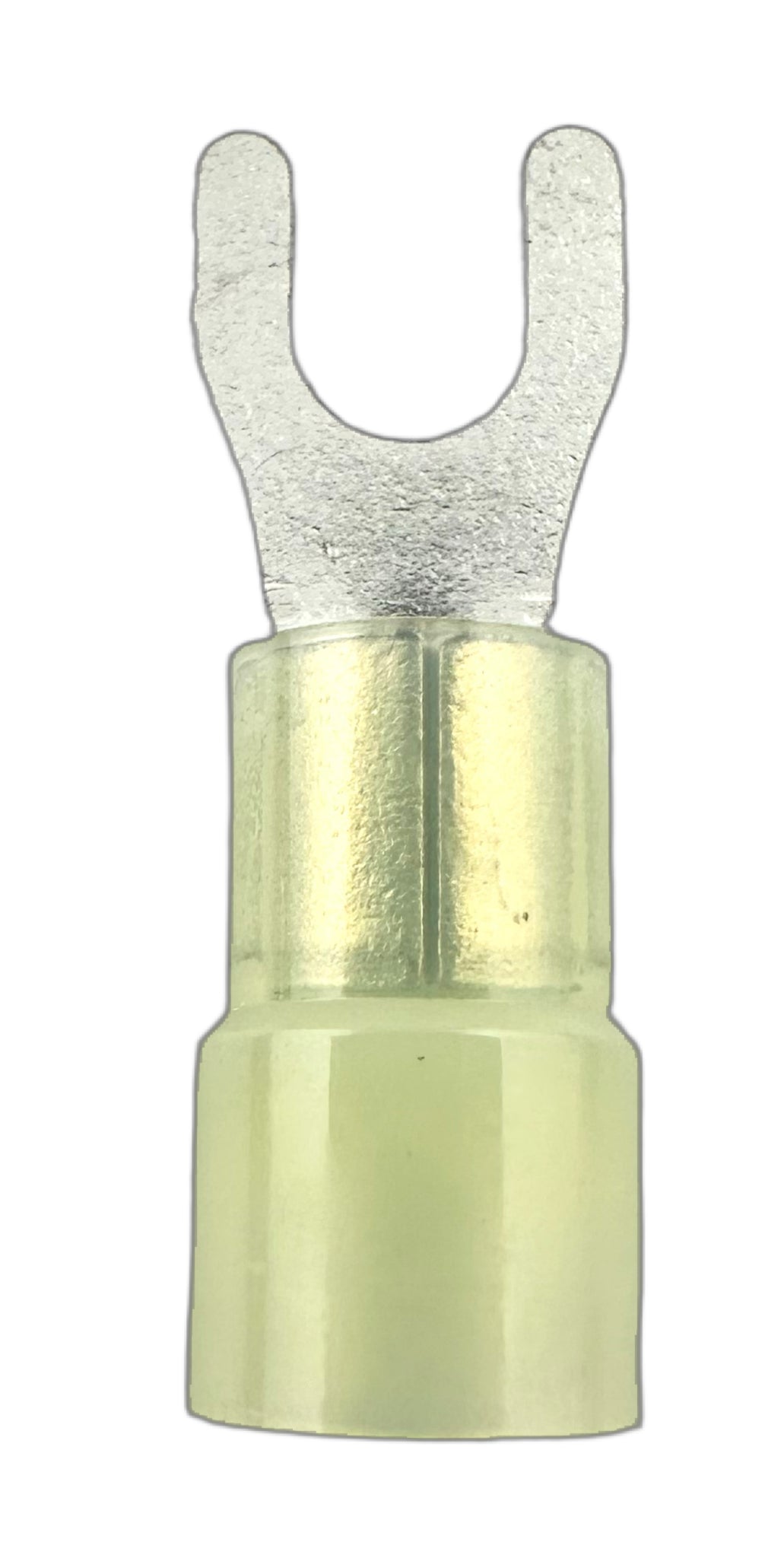

These spade terminals, also known as fork terminals, have nylon insulation on the barrel to help prevent accidental short-circuits with nearby wires and provide durable, chemically-resistant protection to the wire connection. The spade's prongs can be quickly installed around a loosened screw or stud without having to completely remove it.
