Insulated Spade Terminals
For 16-14 AWG and #10 screw
Insulated Spade Terminals, for 16-14 AWG and #10 screw
Regular price
$0.79 each
Regular price
Sale price
$0.79
In stock
Delivers Thu. Dec 18 - Mon. Dec 22
SKU:108AA051
Quantity
each
Free shipping for $99+ orders
Returns accepted within 90 days
| Terminal Type | Spade |
| Insulation | Barrel Insulated |
| Wire Connection Type | Crimp |
| For Wire Gauge | 16-14 |
| For Screw Size | #10 |
| Spade Width | 0.34" |
| Spade Thickness | 0.03" |
| Insulation Color | Blue |
| Insulation Material | Nylon |
| Terminal Material | Tin-Plated Copper |
| Maximum Temperature | 165° F |
| Maximum Voltage | 600V |
| Specifications Met | UL Listed, CSA Certified |
| Country of Origin | United States |

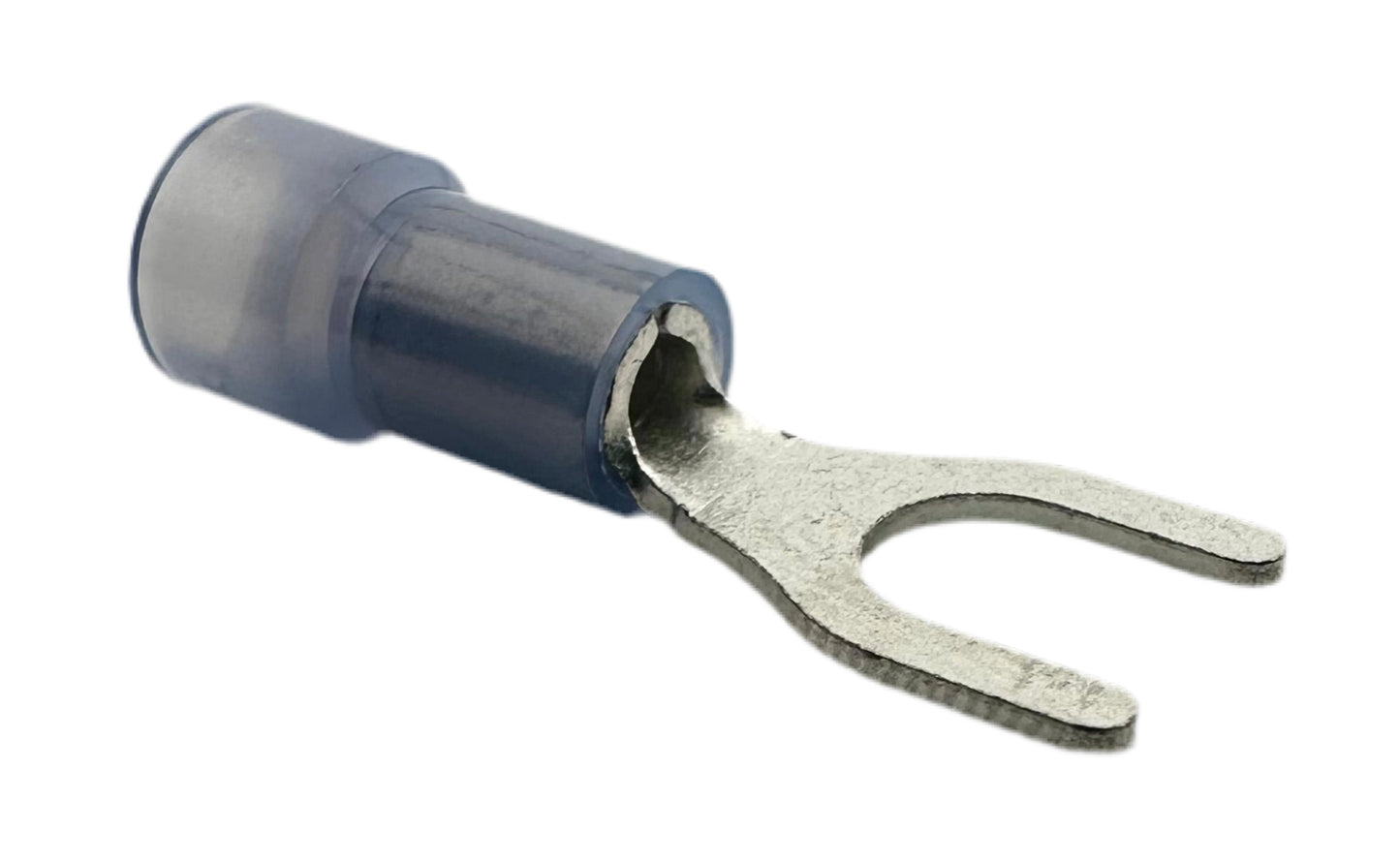

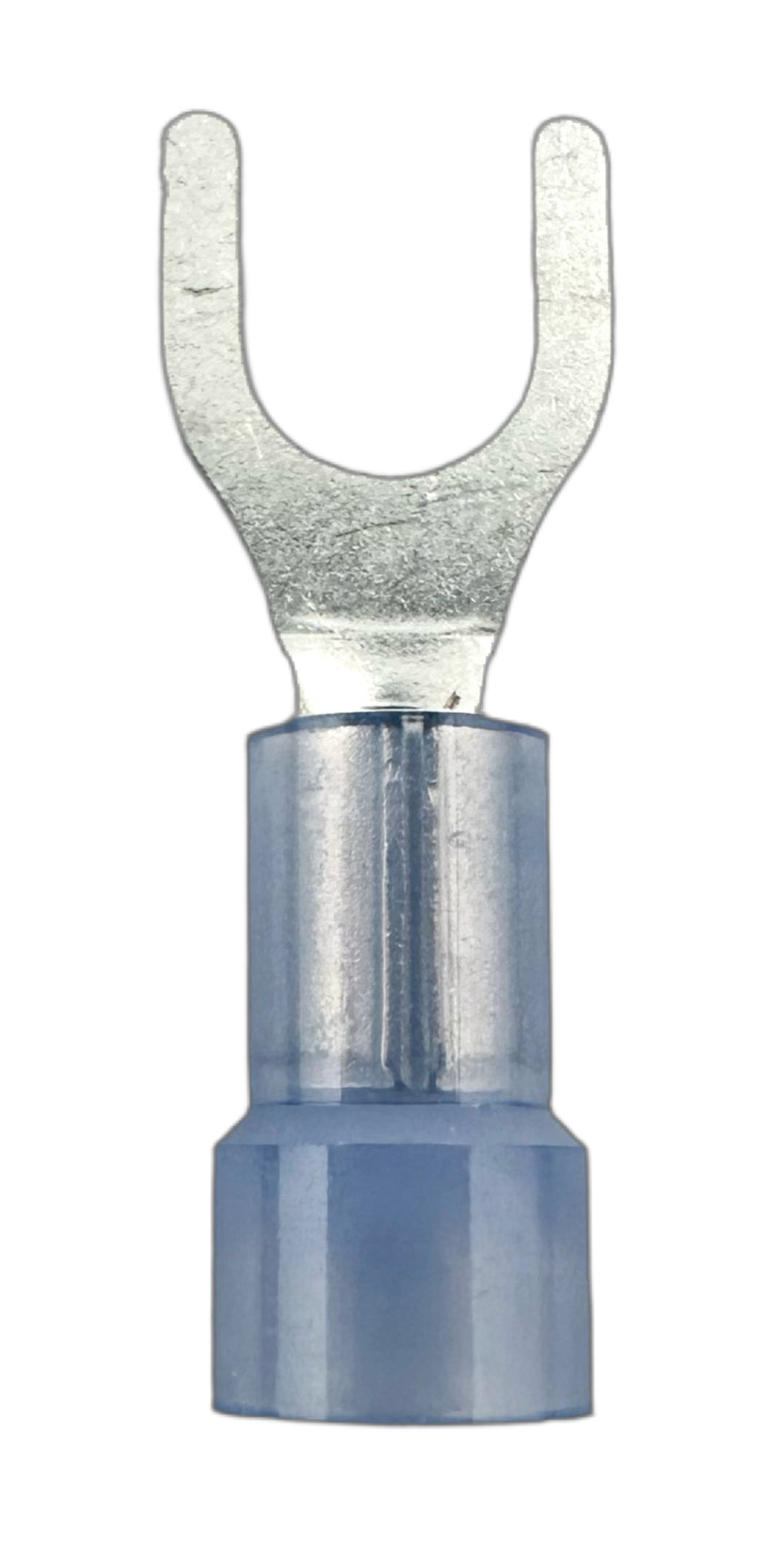

These spade terminals, also known as fork terminals, have nylon insulation on the barrel to help prevent accidental short-circuits with nearby wires and provide durable, chemically-resistant protection to the wire connection. The spade's prongs can be quickly installed around a loosened screw or stud without having to completely remove it.
