Insulated Spade Terminals
for 22-18 AWG and 1/4" screw
Insulated Spade Terminals, for 22-18 AWG and 1/4" screw
Regular price
$16.34 per pack of 50
Regular price
Sale price
$16.34
Unit price
per
In stock - ships from Chicago warehouse
Delivers Mon. Apr 7 - Wed. Apr 9
SKU:108AA03
packs of 50
Free shipping for $99+ orders
Returns accepted within 90 days
| Terminal Type | Spade |
| Insulation | Barrel Insulated |
| Wire Connection Type | Crimp |
| For Wire Gauge | 22-18 |
| For Screw Size | 1/4" |
| Spade Width | 0.47" |
| Spade Thickness | 0.03" |
| Insulation Color | Red |
| Insulation Material | Nylon |
| Terminal Material | Tin-Plated Copper |
| Maximum Temperature | 165° F |
| Maximum Voltage | 600V |
| Package Quantity | 50 |
| Country of Origin | United States |

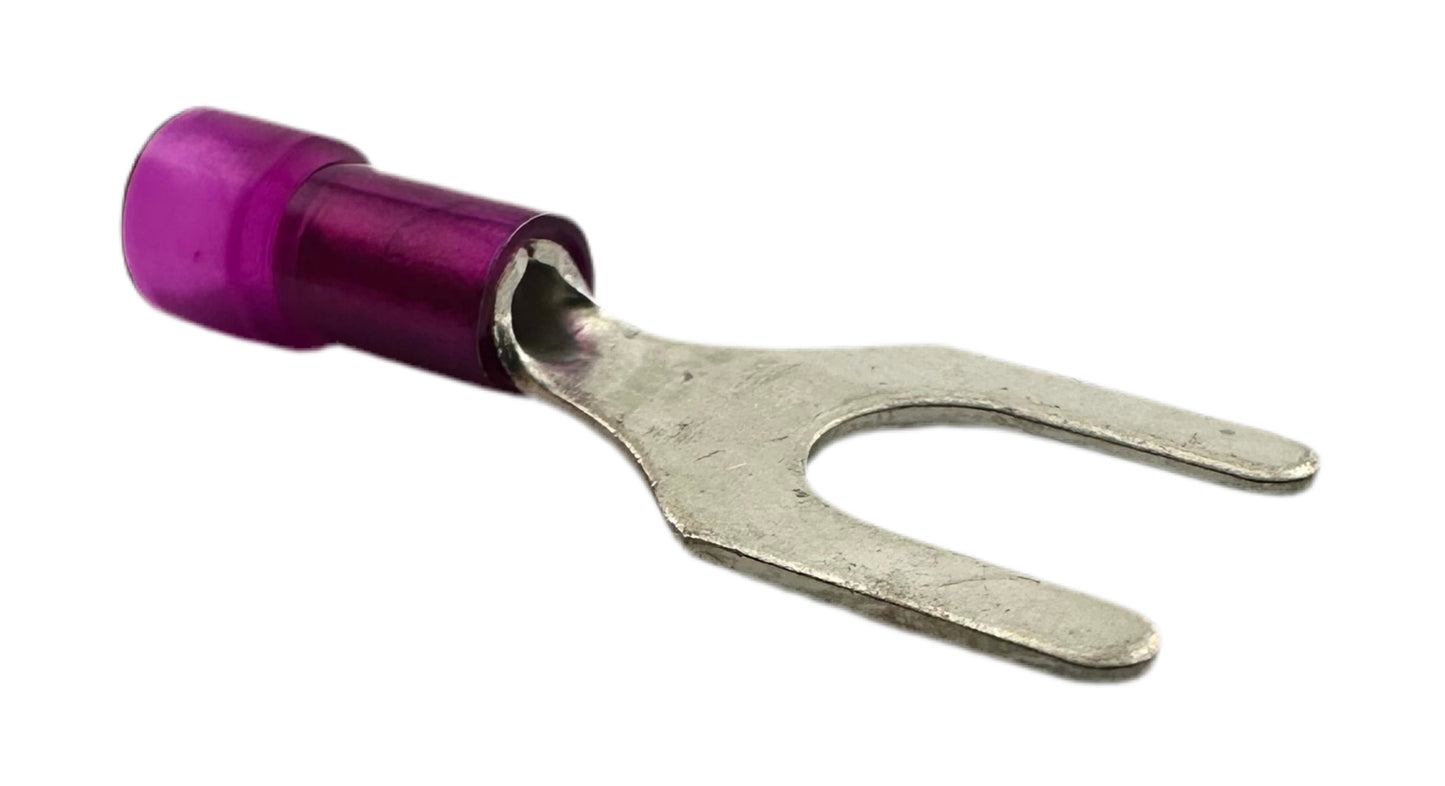

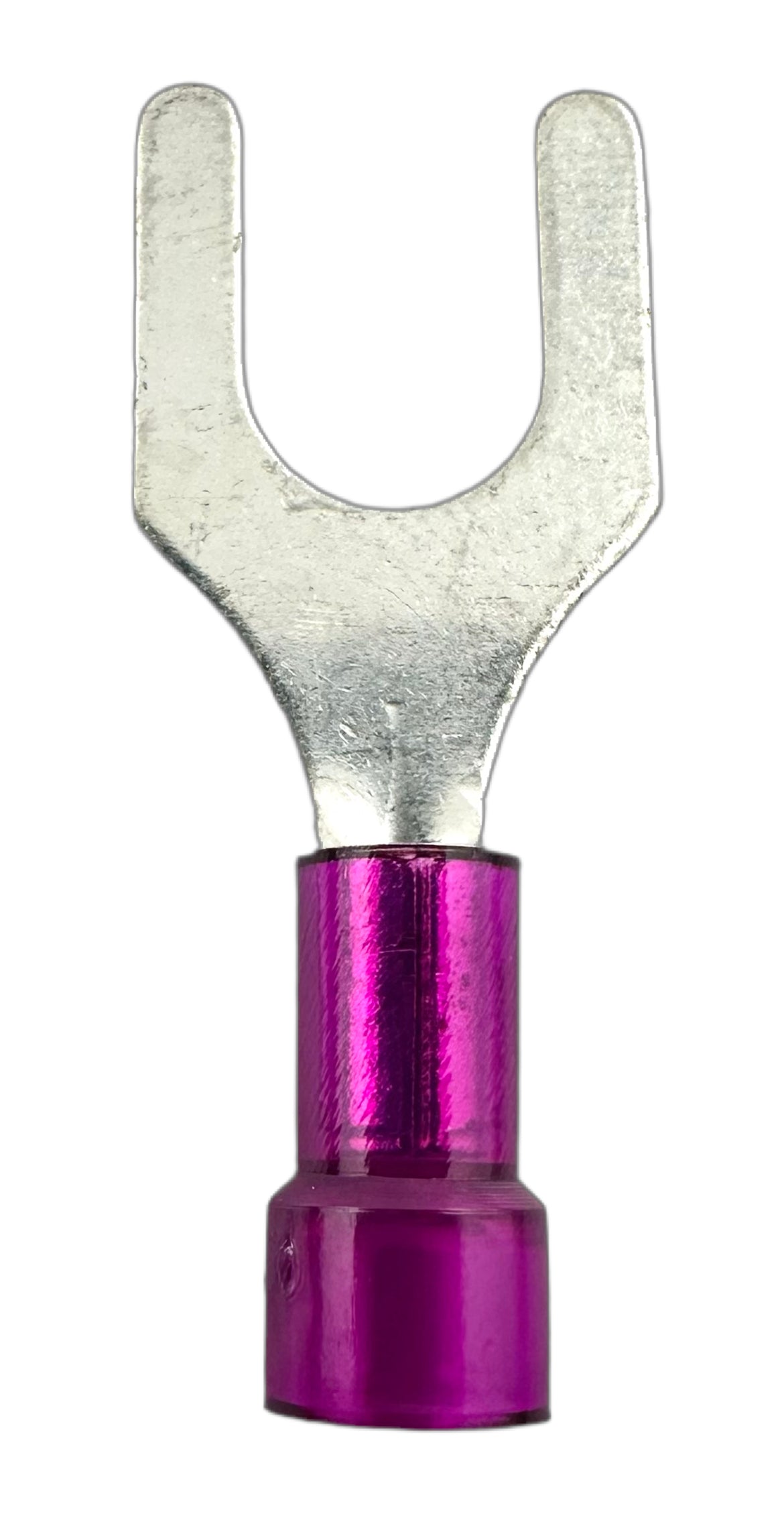

These spade terminals, also known as fork terminals, have nylon insulation on the barrel to help prevent accidental short-circuits with nearby wires and provide durable, chemically-resistant protection to the wire connection. The spade's prongs can be quickly installed around a loosened screw or stud without having to completely remove it.
