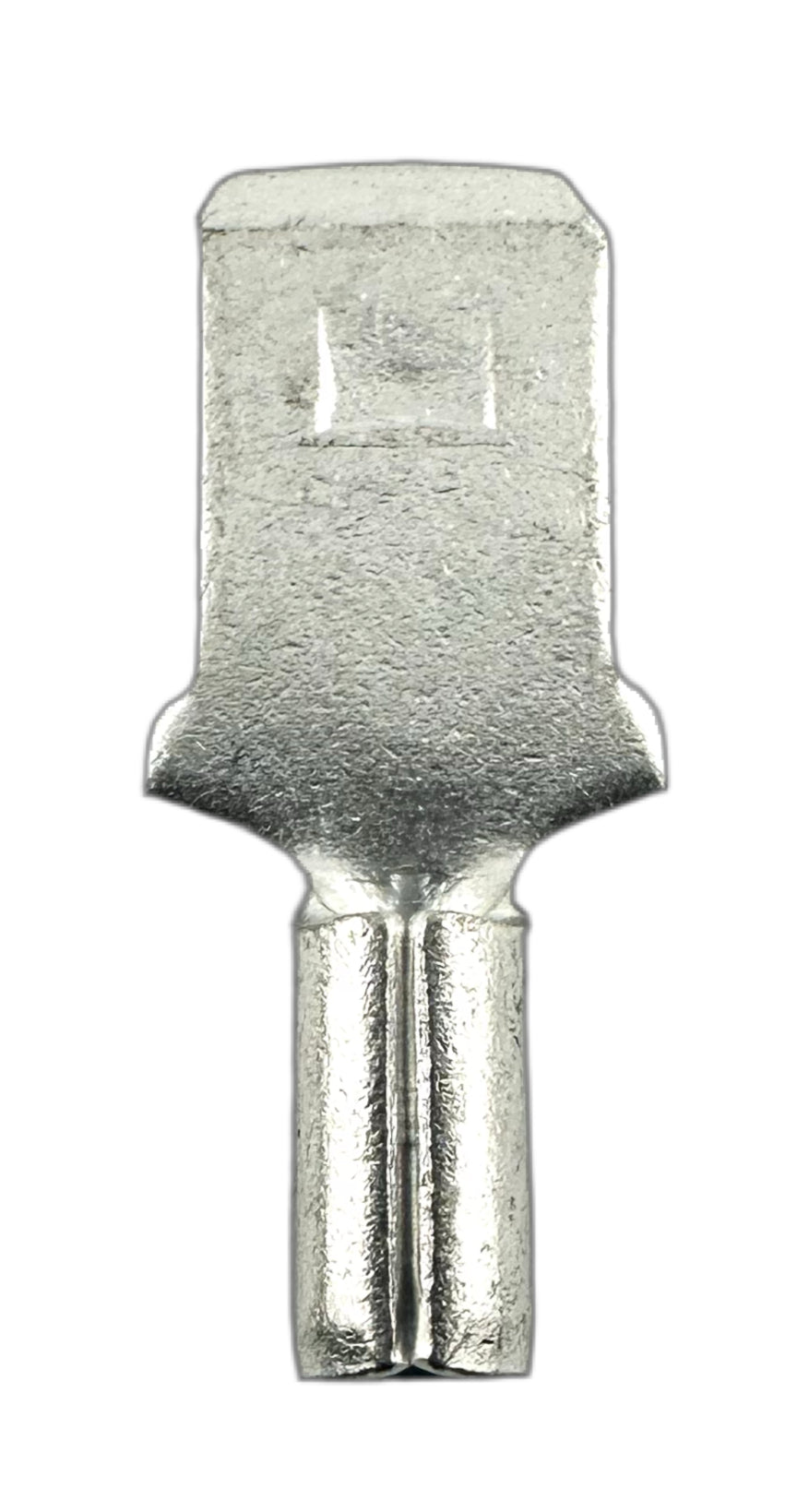

  • Noninsulated Quick-Disconnect Terminals, Male, for 22-18 AWG, 0.250" wide x 0.032" thick straight view
1 2

Noninsulated Quick-Disconnect Terminals
Male, for 22-18 AWG, 0.250" wide x 0.032" thick

Noninsulated Quick-Disconnect Terminals, Male, for 22-18 AWG, 0.250" wide x 0.032" thick

$0.41 each
$0.41
Sale Sold out

In stock

107AA101

Pack size
each

Free shipping for $99+ orders

Returns accepted within 90 days

Terminal TypeQuick Disconnect
InsulationNoninsulated
Wire Connection TypeCrimp
GenderMale
For Wire Gauge22-18
ShapeStraight
Tab Width0.250"
Tab Thickness0.032"
Terminal MaterialTin-Plated Brass
Maximum Temperature165° F
Maximum Voltage600V
Specifications MetUL Listed, CSA Certified
Country of OriginUnited States

These have no insulation, so you can crimp the barrel more precisely and are suited for applications where the connection will not be inadvertently touched. For applications that require easy or frequent maintenance, quick-disconnect terminals join two wires using a male plug and female socket that can be pushed together and pulled apart.
