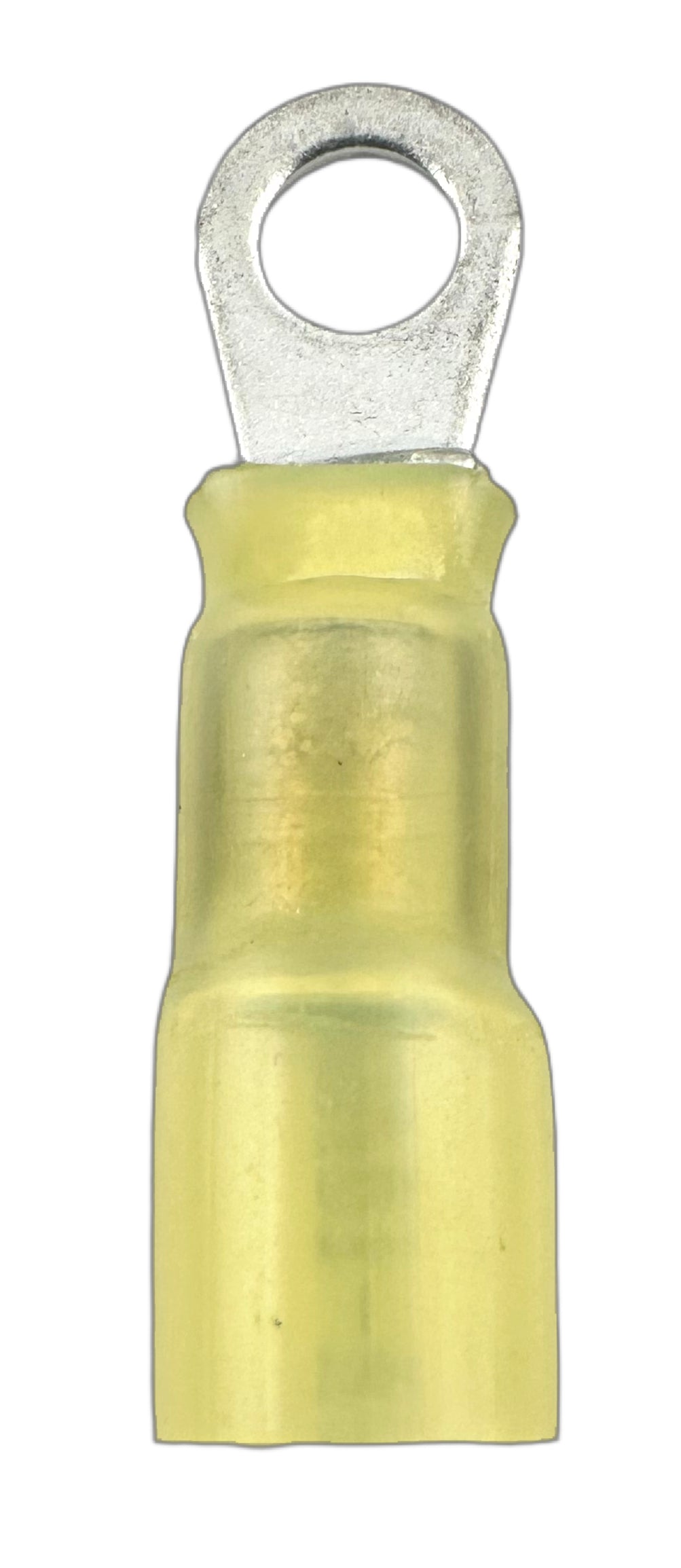

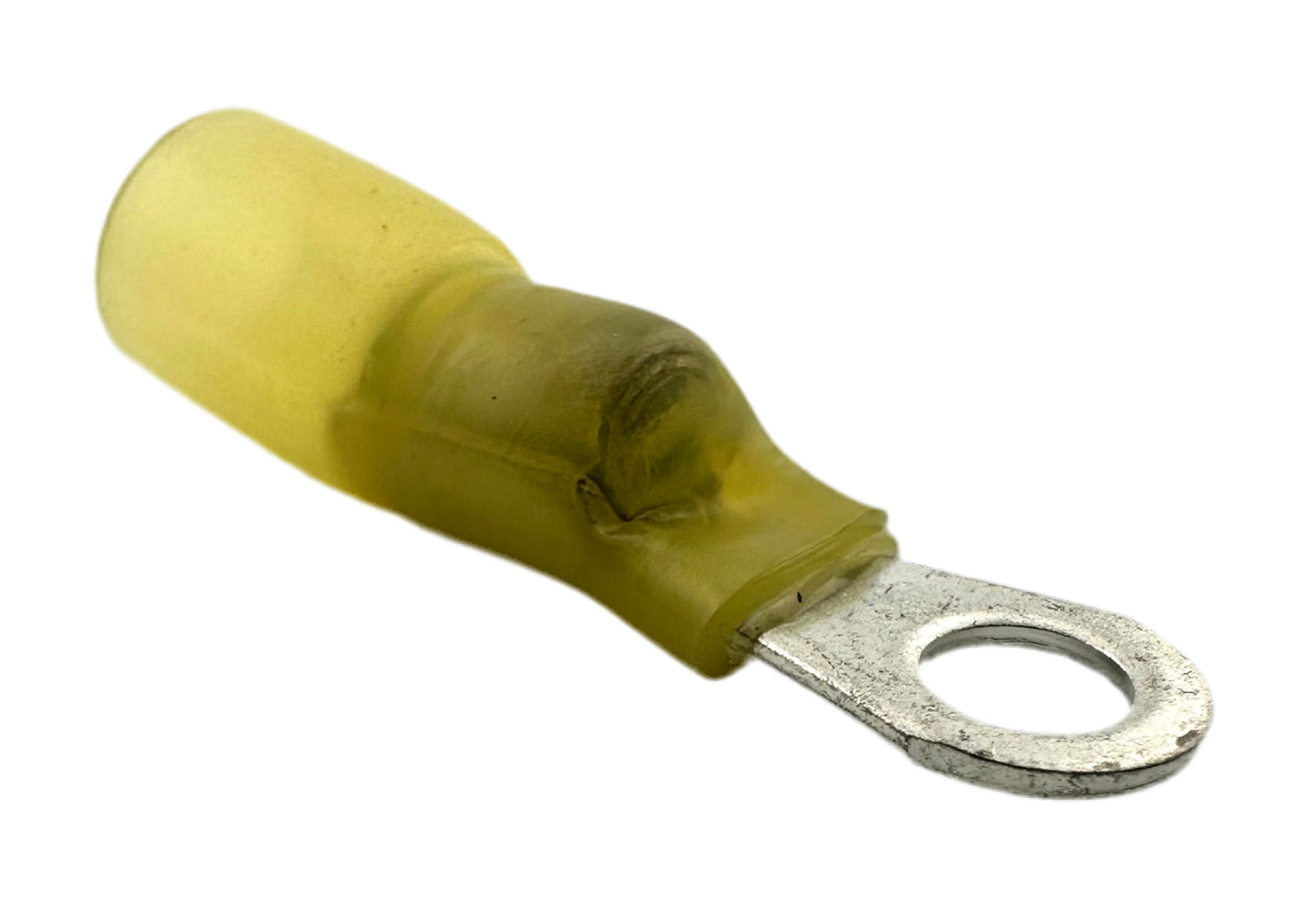

Solder-Loaded Heat-Shrink Ring Terminals

for 12-10 AWG and #10 screw

Solder-Loaded Heat-Shrink Ring Terminals, for 12-10 AWG and #10 screw

$23.21 per pack of 25
$23.21
Sale Sold out

In stock - ships from Chicago warehouse

Delivers Mon. Apr 7 - Wed. Apr 9

110AA07

packs of 25

Free shipping for $99+ orders

Returns accepted within 90 days

Terminal TypeRing
InsulationBarrel Insulated
Wire Connection TypeSolder
For Wire Gauge12-10
For Screw Size#10
Ring Width0.34"
Ring Thickness0.04"
Insulation ColorYellow
Insulation MaterialAdhesive heat-shrink
Terminal MaterialTin-Plated Copper
Maximum Temperature220° F
Maximum Voltage600V
Package Quantity25
Country of OriginUnited States

When heat is applied to these ring terminals, the enclosed solder fuses the wire to the terminal - no crimping needed. The adhesive insulation also shrinks to seal out contaminants that could cause corrosion and prevents short-circuiting from nearby wire. Fasten ring terminals to a threaded screw or stud for a secure connection.
