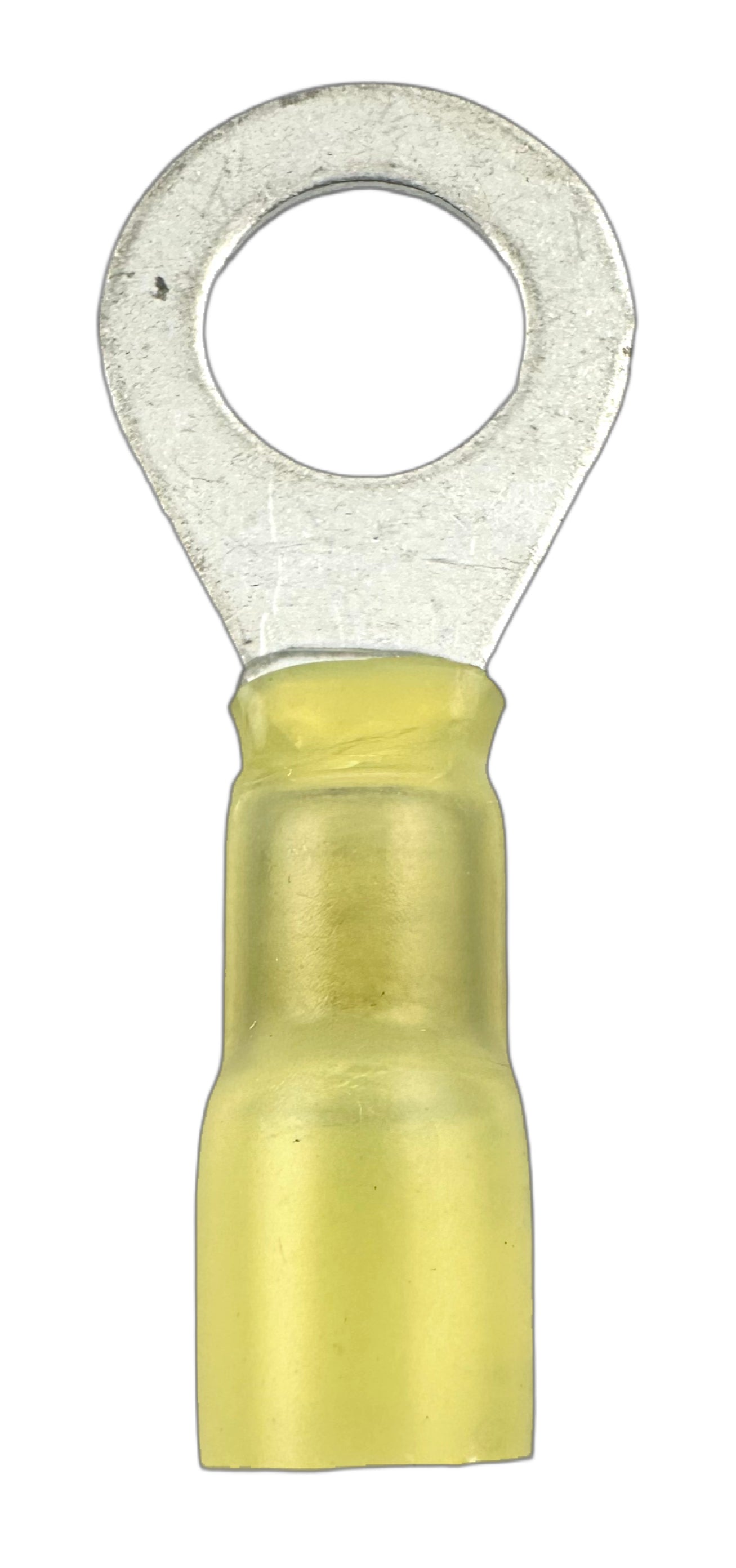

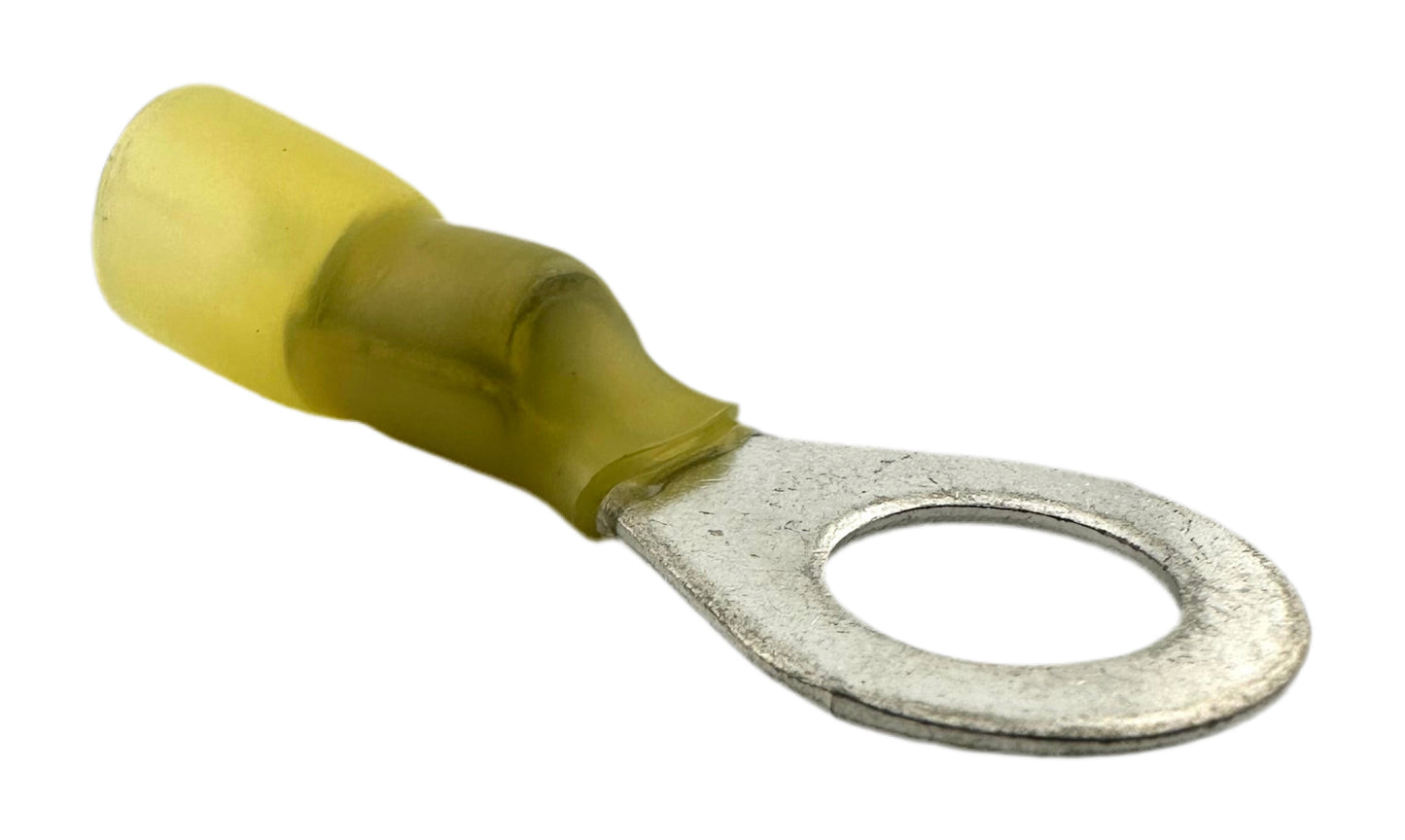

Solder-Loaded Heat-Shrink Ring Terminals
for 12-10 AWG and 3/8" screw
Solder-Loaded Heat-Shrink Ring Terminals, for 12-10 AWG and 3/8" screw
Regular price
$31.23 per pack of 25
Regular price
Sale price
$31.23
Unit price
per
In stock - ships from Chicago warehouse
Delivers Mon. Apr 7 - Wed. Apr 9
SKU:110AA09
packs of 25
Free shipping for $99+ orders
Returns accepted within 90 days
| Terminal Type | Ring |
| Insulation | Barrel Insulated |
| Wire Connection Type | Solder |
| For Wire Gauge | 12-10 |
| For Screw Size | 3/8" |
| Ring Width | 0.56" |
| Ring Thickness | 0.04" |
| Insulation Color | Yellow |
| Insulation Material | Adhesive heat-shrink |
| Terminal Material | Tin-Plated Copper |
| Maximum Temperature | 220° F |
| Maximum Voltage | 600V |
| Package Quantity | 25 |
| Country of Origin | United States |
When heat is applied to these ring terminals, the enclosed solder fuses the wire to the terminal - no crimping needed. The adhesive insulation also shrinks to seal out contaminants that could cause corrosion and prevents short-circuiting from nearby wire. Fasten ring terminals to a threaded screw or stud for a secure connection.
