Insulated Spade Terminals
These spade terminals, also known as fork terminals, have nylon insulation on the barrel to help prevent accidental short-circuits with nearby wires and provide durable, chemically-resistant protection to the wire connection. The spade's prongs can be quickly installed around a loosened screw or stud without having to completely remove it.
| For Wire Gauge | For Screw Size | Spade Wd. | Spade Thick. | Insulation Color | Insulation Material | Terminal Material | Max. Temp. | Max. Voltage | Specifications Met | Each | Pkg. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 22-18 | #8 | 0.31" | 0.03" | Red | Nylon | Tin-Plated Copper | 165° F | 600V | UL Listed, CSA Certified | 108AA01 | $0.84 | $16.85 / pack of 50 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 22-18 | #10 | 0.31" | 0.03" | Red | Nylon | Tin-Plated Copper | 165° F | 600V | UL Listed, CSA Certified | 108AA02 | $0.81 | $16.14 / pack of 50 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 22-18 | 1/4" | 0.47" | 0.03" | Red | Nylon | Tin-Plated Copper | 165° F | 600V | __ | 108AA03 | $0.82 | $16.34 / pack of 50 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 16-14 | #8 | 0.34" | 0.03" | Blue | Nylon | Tin-Plated Copper | 165° F | 600V | UL Listed, CSA Certified | 108AA04 | $0.79 | $15.92 / pack of 50 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 16-14 | #10 | 0.34" | 0.03" | Blue | Nylon | Tin-Plated Copper | 165° F | 600V | UL Listed, CSA Certified | 108AA05 | $0.79 | $15.92 / pack of 50 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 16-14 | 1/4" | 0.47" | 0.03" | Blue | Nylon | Tin-Plated Copper | 165° F | 600V | UL Listed, CSA Certified | 108AA06 | $0.79 | $15.92 / pack of 50 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 12-10 | #8 | 0.35" | 0.04" | Yellow | Nylon | Tin-Plated Copper | 165° F | 600V | UL Listed, CSA Certified | 108AA07 | $1.08 | $21.56 / pack of 50 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 12-10 | #10 | 0.37" | 0.04" | Yellow | Nylon | Tin-Plated Copper | 165° F | 600V | UL Listed, CSA Certified | 108AA08 | $1.08 | $21.56 / pack of 50 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 12-10 | 1/4" | 0.47" | 0.04" | Yellow | Nylon | Tin-Plated Copper | 165° F | 600V | UL Listed, CSA Certified | 108AA09 | $0.99 | $19.95 / pack of 50 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-

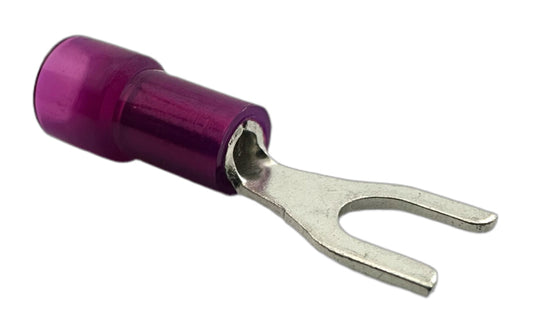

For 22-18 AWG and #8 screw
Regular price From $0.84 eachRegular priceUnit price per -
For 22-18 AWG and #10 screw
Regular price From $0.81 eachRegular priceUnit price per -

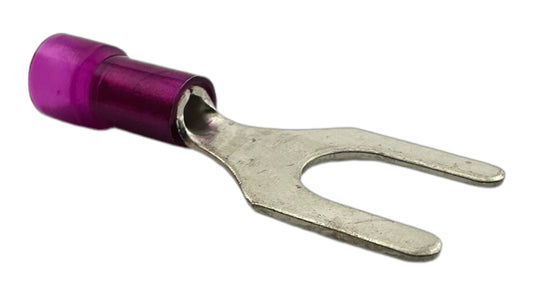

For 22-18 AWG and 1/4" screw
Regular price From $0.82 eachRegular priceUnit price per -

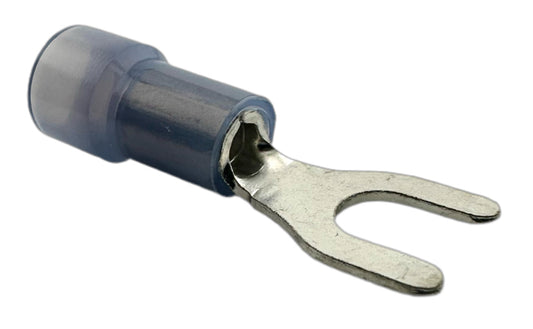

For 16-14 AWG and #8 screw
Regular price From $0.79 eachRegular priceUnit price per -

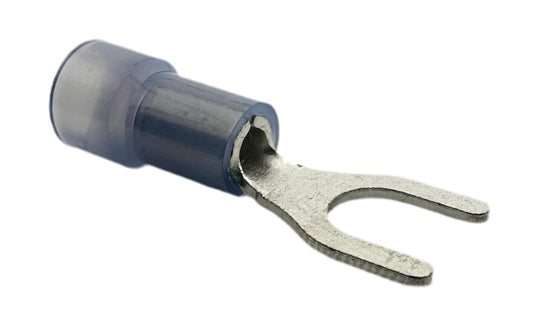

For 16-14 AWG and #10 screw
Regular price From $0.79 eachRegular priceUnit price per -
For 16-14 AWG and 1/4" screw
Regular price From $0.79 eachRegular priceUnit price per -

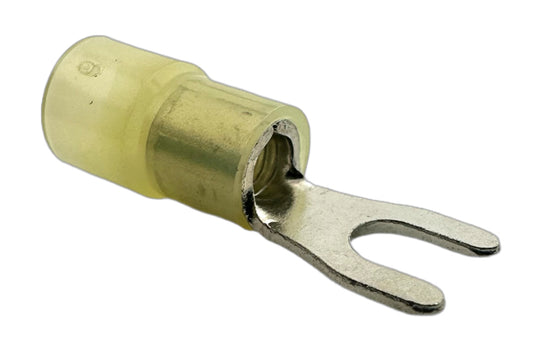

For 12-10 AWG and #8 screw
Regular price From $1.08 eachRegular priceUnit price per -

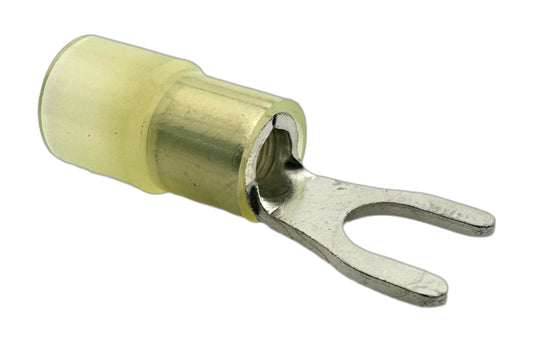

For 12-10 AWG and #10 screw
Regular price From $1.08 eachRegular priceUnit price per -

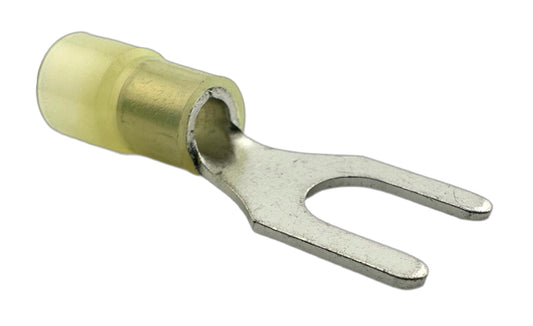

For 12-10 AWG and 1/4" screw
Regular price From $0.99 eachRegular priceUnit price per
Noninsulated Spade Terminals
These spade terminals, also known as fork terminals, have no insulation, so you can crimp the barrel more precisely and are suited for applications where the connection will not be inadvertently touched. The spade's prongs can be quickly installed around a loosened screw or stud without having to completely remove it.
| For Wire Gauge | For Screw Size | Spade Wd. | Spade Thick. | Terminal Material | Max. Temp. | Max. Voltage | Specifications Met | Each | Pkg. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 22-18 | #8 | 0.31" | 0.03" | Tin-Plated Copper | 345° F | 600V | UL Listed, CSA Certified | 109AA01 | $0.36 | $9.00 / pack of 100 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 22-18 | #10 | 0.31" | 0.03" | Tin-Plated Copper | 345° F | 600V | UL Listed, CSA Certified | 109AA02 | $0.38 | $9.20 / pack of 100 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 22-18 | 1/4" | 0.47" | 0.03" | Tin-Plated Copper | 345° F | 600V | __ | 109AA03 | $0.41 | $9.30 / pack of 100 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 16-14 | #8 | 0.34" | 0.03" | Tin-Plated Copper | 345° F | 600V | UL Listed, CSA Certified | 109AA04 | $0.43 | $9.60 / pack of 100 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 16-14 | #10 | 0.34" | 0.03" | Tin-Plated Copper | 345° F | 600V | UL Listed, CSA Certified | 109AA05 | $0.68 | $16.91 / pack of 100 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 16-14 | 1/4" | 0.47" | 0.03" | Tin-Plated Copper | 345° F | 600V | UL Listed, CSA Certified | 109AA06 | $0.49 | $11.94 / pack of 100 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 12-10 | #8 | 0.35" | 0.04" | Tin-Plated Copper | 345° F | 600V | UL Listed, CSA Certified | 109AA07 | $0.81 | $20.32 / pack of 100 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 12-10 | #10 | 0.37" | 0.04" | Tin-Plated Copper | 345° F | 600V | UL Listed, CSA Certified | 109AA08 | $0.88 | $22.10 / pack of 100 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 12-10 | 1/4" | 0.47" | 0.04" | Tin-Plated Copper | 345° F | 600V | UL Listed, CSA Certified | 109AA09 | $0.64 | $15.71 / pack of 100 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-
For 22-18 AWG and #8 screw
Regular price From $0.36 eachRegular priceUnit price per -
For 22-18 AWG and #10 screw
Regular price From $0.38 eachRegular priceUnit price per -

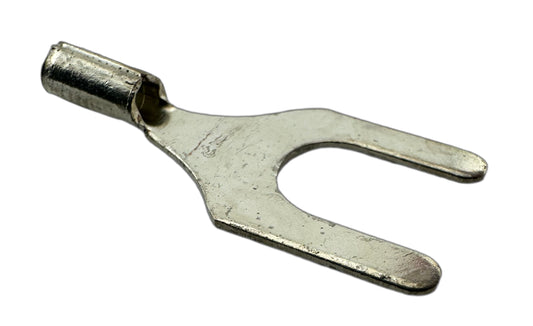

For 22-18 AWG and 1/4" screw
Regular price From $0.41 eachRegular priceUnit price per -

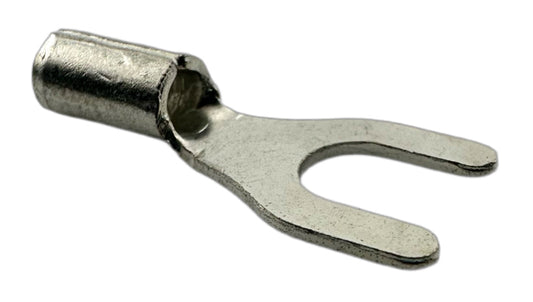

For 16-14 AWG and #8 screw
Regular price From $0.43 eachRegular priceUnit price per -

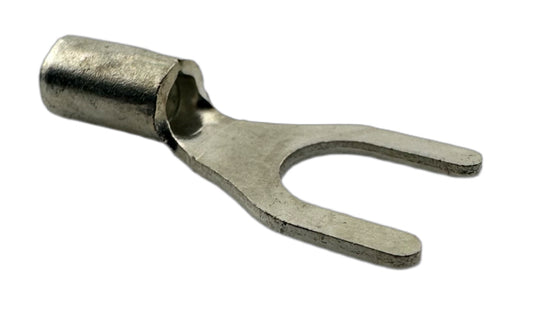

For 16-14 AWG and #10 screw
Regular price From $0.68 eachRegular priceUnit price per -

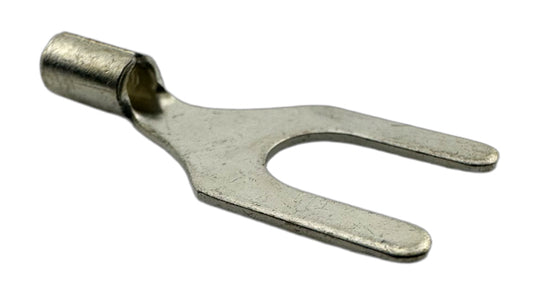

For 16-14 AWG and 1/4" screw
Regular price From $0.49 eachRegular priceUnit price per -

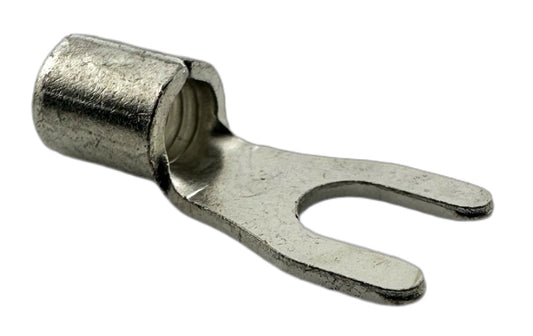

For 12-10 AWG and #8 screw
Regular price From $0.81 eachRegular priceUnit price per -

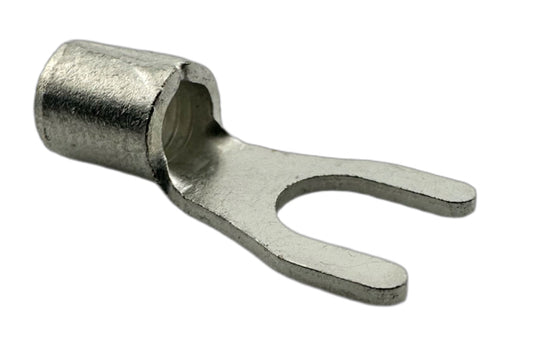

For 12-10 AWG and #10 screw
Regular price From $0.88 eachRegular priceUnit price per -

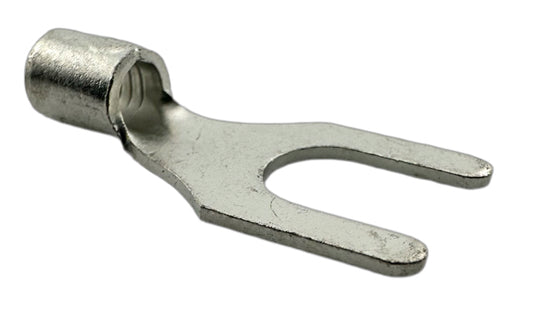

For 12-10 AWG and 1/4" screw
Regular price From $0.64 eachRegular priceUnit price per
